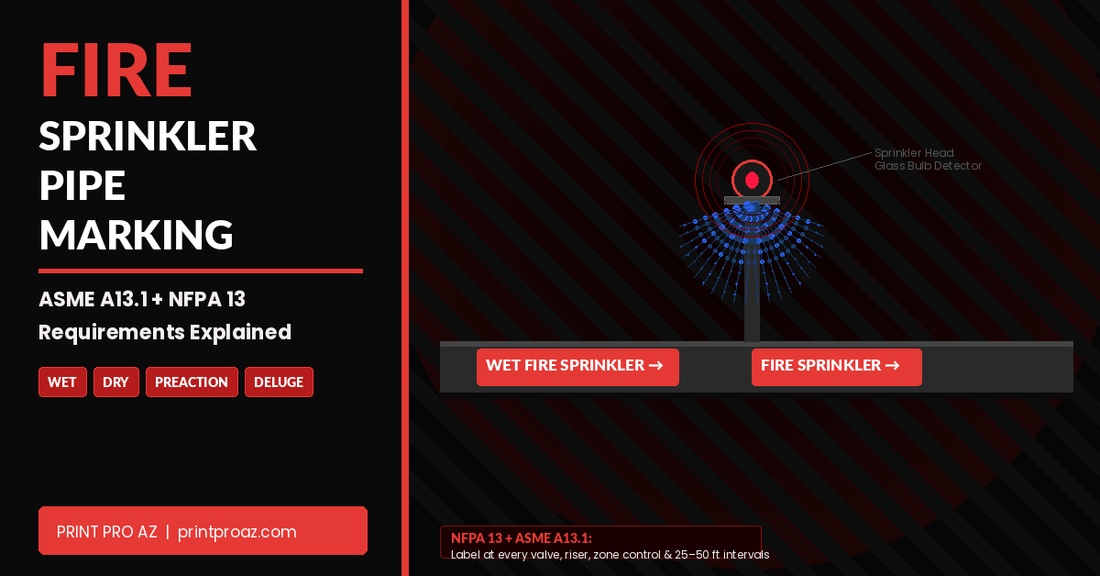

Fire Sprinkler Pipe Marking: ASME A13.1 and NFPA 13 Requirements
Fire sprinkler pipes are some of the most important pipes in any building — and they need to be identified correctly, every time.
When a fire breaks out, emergency responders need to find, understand, and operate the fire protection system fast. Incorrect or missing labels slow that process down. In a fire, seconds matter.
This guide covers the correct pipe marker colors, label text, and code requirements for fire sprinkler systems — including how ASME A13.1 and NFPA 13 work together.
Two Standards Govern Fire Sprinkler Pipe Marking
Unlike most pipe systems, fire sprinkler piping is governed by two separate standards:
ASME A13.1 — the national standard for all pipe identification. Sets the color code, sizing chart, and placement rules that apply to every pipe system.
NFPA 13 — the National Fire Protection Association's standard for fire sprinkler installation. Includes specific requirements for identifying fire protection piping and equipment.
Both apply. NFPA 13 adds requirements on top of ASME A13.1 — it doesn't replace it. The best approach is to meet both.
ASME A13.1 Color for Fire Sprinkler Pipes
Under ASME A13.1, fire suppression water is classified as a fire quenching fluid — its own category specifically for fire protection.
The correct color for fire sprinkler pipe markers is:
Red background — White text
This is one of the most consistent and universally recognized color combinations in the ASME A13.1 system. Red means fire protection, period.
This applies to:
- Fire sprinkler mains
- Branch lines and arm-overs
- Standpipe risers
- Fire water supply mains
- Yard mains (underground fire mains)
- Hose connections and standpipe connections
- Wet, dry, preaction, and deluge system piping
No other pipe system uses red/white under ASME A13.1 — which makes fire protection piping immediately recognizable anywhere in a building.
Label Text for Fire Sprinkler Systems
ASME A13.1 requires clear identification of what's in the pipe. For fire sprinkler systems, the label text should identify both the pipe contents and the system type.
| Pipe / System | Recommended Label Text |
|---|---|
| Fire sprinkler main | FIRE SPRINKLER SUPPLY |
| Wet system branch | WET FIRE SPRINKLER |
| Dry system main | DRY FIRE SPRINKLER |
| Preaction system | PREACTION FIRE SPRINKLER |
| Deluge system | DELUGE FIRE SPRINKLER |
| Standpipe (Class I) | CLASS I STANDPIPE |
| Standpipe (Class II) | CLASS II STANDPIPE |
| Standpipe (Class III) | CLASS III STANDPIPE |
| Fire pump supply | FIRE PUMP SUPPLY |
| Fire pump discharge | FIRE PUMP DISCHARGE |
| Yard main / underground | FIRE MAIN |
| Foam system supply | FOAM/WATER SUPPRESSION |
| Pre-primed drain | FIRE SPRINKLER DRAIN |
In buildings with multiple suppression system types — for example, wet sprinklers in office areas and a deluge system in the loading dock — using the full system type in the label text helps fire responders understand the system immediately.
NFPA 13 Labeling Requirements
NFPA 13 adds specific requirements that go beyond the basic ASME A13.1 pipe identification rules. Here's what NFPA 13 requires for pipe identification:
System type identification. NFPA 13 requires that the type of fire sprinkler system be identified at or near every main control valve. This means labeling the system as wet, dry, preaction, or deluge — not just "fire sprinkler."
Control valve identification. Every control valve in a fire sprinkler system must be labeled to identify which portion of the system it controls. This is in addition to the pipe marker on the pipe itself.
Inspector's test connections. NFPA 13 requires that inspector's test connections be clearly labeled.
Hydraulic design placard. The hydraulic design information for the system (flow rate, pressure, density) must be posted on or near the riser. This isn't a pipe marker per se, but it's part of the complete identification package.
Fire department connections. The fire department connection (FDC) must be labeled with the system it serves and the type of system.
The combination of ASME A13.1 pipe markers and NFPA 13 valve and equipment labels gives fire responders a complete picture of the system.
Types of Fire Sprinkler Systems — and Why Labeling Type Matters
Not all fire sprinkler pipes carry the same thing. The system type determines what's in the pipe at any given moment.
Wet Systems
The most common type. Pipes are always filled with pressurized water. When a sprinkler head activates, water flows immediately.
Label: WET FIRE SPRINKLER or FIRE SPRINKLER SUPPLY
Dry Systems
Used in spaces where freezing is a concern (parking garages, unheated warehouses, loading docks). Pipes are filled with pressurized air or nitrogen, not water. When a sprinkler activates, air releases and water rushes in from the dry pipe valve.
Label: DRY FIRE SPRINKLER
This distinction is critical for fire responders — they need to know whether water will be immediately present or whether there will be a delay while the dry system charges.
Preaction Systems
Common in data centers, archives, museums, and areas where accidental discharge would be catastrophic. The system requires two events to occur before water is released: a detection signal AND sprinkler head activation.
Label: PREACTION FIRE SPRINKLER
Preaction systems sometimes have separate supervisory air pressure in the pipe — which means they can look like a dry system until you read the label.
Deluge Systems
All sprinkler heads in a deluge system are open (no fusible links or glass bulbs). When the system activates, water floods every sprinkler head simultaneously. Used in high-hazard areas like aircraft hangars, chemical storage, and flammable liquid areas.
Label: DELUGE FIRE SPRINKLER
A fire responder or maintenance worker who doesn't know they're looking at a deluge system could be dangerously surprised by the volume and speed of water discharge.
Foam/Water Systems
Similar to deluge but discharges a foam/water mixture instead of plain water. Used in aviation fuel areas, fuel storage, and hazmat areas.
Label: FOAM/WATER SUPPRESSION
Flow Direction Arrows on Fire Sprinkler Piping
Flow direction arrows are required on fire sprinkler piping under ASME A13.1 — and they're especially valuable for fire responders who need to quickly understand which direction water flows and which valve controls which section.
Arrow direction on fire sprinkler piping typically shows:
- Water flowing from the fire pump or city main toward the building distribution system
- Water flowing from the distribution main toward the branch lines and heads
In a dry or preaction system, the arrow shows the direction supervisory air flows toward the sprinkler heads, and the direction water would flow when the system charges.
Use integrated arrow labels that are part of the pipe marker, or add standalone red/white arrow labels at each label location.
Sizing Fire Sprinkler Pipe Markers
Fire sprinkler mains are typically 4" to 8" on large systems. Branch lines and arm-overs range from ¾" to 2½". Use ASME A13.1 sizing:
| Pipe OD | Label Size |
|---|---|
| ¾" to 2" | 8" × 1⅛" |
| 2½" to 7⅞" | 14" × 2¼" |
| 8" to 10" | 24" × 4" |
| Over 10" | 32" × 4" |
For most sprinkler branch lines and arm-overs (¾"–1½"), the 8" × 1⅛" label is correct. Cross mains and feed mains (2"–6") typically use the 14" × 2¼" label. Large risers and yard mains may need 24" or 32" labels.
Placement Rules for Fire Sprinkler Piping
All ASME A13.1 placement rules apply, plus the NFPA 13 specific requirements:
At every control valve — The most important placement location for fire systems. Every OS&Y valve, butterfly valve, and zone control valve needs a label identifying what it controls.
At the riser — Each riser in a multi-zone or multi-story system needs a label identifying which area or floor it serves.
At the fire pump — Label supply and discharge lines at the fire pump. Label the pump test header. Label the bypass if present.
At every branch main — When a feed main branches to serve different zones, wings, or floors, label each branch clearly.
At standpipe connections — Class I, II, and III standpipes all need labels identifying the standpipe class at each hose connection location.
At wall and floor penetrations — Both sides of every penetration.
At the fire department connection (FDC) — The FDC must be labeled with system type and what it serves.
Every 25–50 feet on mains — In corridors and mechanical spaces, repeat labels at intervals.
Don't Confuse Fire Sprinkler Lines with Domestic Water Lines
In older buildings, fire sprinkler mains and domestic water mains sometimes run parallel through the same mechanical space. Both carry water. Without labels, they can look identical.
This is dangerous for several reasons:
- A plumber might tap into a fire main thinking it's a domestic water main, reducing the system's available water flow during a fire.
- During a fire, emergency responders might inadvertently shut off the wrong supply valve.
- Maintenance personnel might add chemical treatment or flush a domestic line only to accidentally treat or flush the fire system.
Red/white labels on fire lines and appropriate domestic water labels on potable lines prevent all of these scenarios.
Shop Fire Sprinkler Pipe Markers
Print Pro AZ stocks red/white fire sprinkler pipe markers for all system types in all four ASME A13.1 sizes. Same-day shipping. Made in the USA.
👉 Shop Red/White Pipe Markers (Fire Sprinkler) → 👉 Need custom labels for preaction, deluge, or foam systems? Order Custom Markers →
Frequently Asked Questions
What color are fire sprinkler pipe markers? Fire sprinkler pipe markers are red background with white text under ASME A13.1. Red/white is used exclusively for fire suppression and fire protection piping.
What does NFPA 13 require for pipe marking? NFPA 13 requires that the type of fire sprinkler system (wet, dry, preaction, deluge) be identified at or near every control valve. It also requires that control valves be labeled to identify which portion of the system they serve, and that inspector's test connections be clearly labeled.
Do fire sprinkler pipes need flow direction arrows? Yes. ASME A13.1 requires flow direction arrows on all pipe systems including fire sprinkler piping. Arrows help fire responders and maintenance personnel quickly understand system layout and flow direction.
What is the correct label for a dry pipe fire sprinkler system? Use "DRY FIRE SPRINKLER" with red/white colors. The distinction between wet and dry systems is important for fire responders and must be called out on the label.
What label goes on a preaction fire sprinkler system? "PREACTION FIRE SPRINKLER" with red/white colors. Preaction systems are common in data centers, museums, and other water-sensitive areas where accidental discharge would be damaging.
Do underground fire mains need pipe markers? Underground fire mains typically use colored tracer tape and buried marker balls rather than surface labels. Above-ground sections of yard mains that are accessible need red/white ASME A13.1 pipe markers.
What size pipe marker do I need for a 2" fire sprinkler branch line? A 2" nominal pipe has an OD of about 2.375". That puts it in the 2½"–7⅞" OD range under ASME A13.1, which requires a 14" × 2¼" label. For ¾" and 1" arm-overs, use the 8" × 1⅛" label.
Can I use the same red/white markers for a foam-water suppression system? You should use custom labels that say "FOAM/WATER SUPPRESSION" rather than "FIRE SPRINKLER" — the system type matters. The red/white color combination is appropriate, but the label text should accurately identify the foam system to avoid confusion about what will discharge when the system activates.
