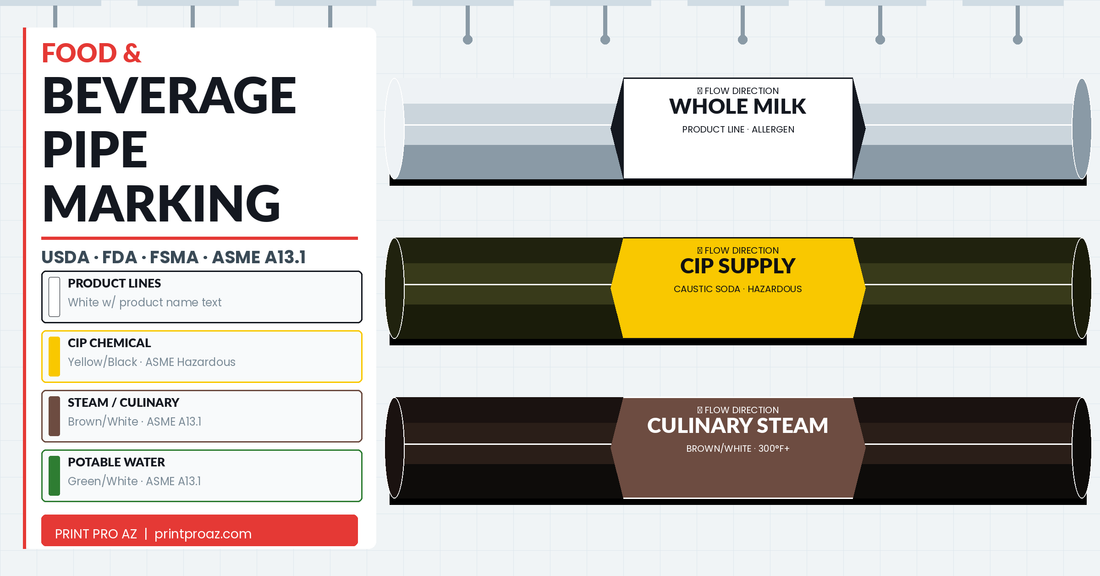

Food and Beverage Pipe Marking: Requirements, Colors, and Best Practices
Pipe marking in a food and beverage plant is not just a safety issue — it is a food safety issue. Mislabeled pipes can lead to cross-contamination of product lines, accidental CIP chemical contact with food, or operators opening the wrong valves during sanitation. Any of these errors can trigger a recall, an FDA citation, or worse.
The good news is that with the right system in place, food and beverage pipe marking is straightforward. This guide covers exactly what is required, what color codes apply, and how to handle the unique challenges of sanitary facilities.
Why Food and Beverage Pipe Marking Is Different
Most industrial facilities only have to meet ASME A13.1 and OSHA requirements. Food and beverage plants must also satisfy:
- USDA inspection requirements for meat, poultry, and egg product facilities
- FDA Food Safety Modernization Act (FSMA) hazard analysis and preventive controls
- 3-A Sanitary Standards for dairy and food equipment design
- NSF/ANSI standards for materials in contact with food zones
None of these directly mandate specific pipe marker colors beyond ASME A13.1. But they all require that piping systems be clearly identified to prevent cross-contamination and support HACCP (Hazard Analysis and Critical Control Point) plans.
The practical result: food plants need a pipe marking system that goes beyond the standard ASME A13.1 color code. You must clearly distinguish between product lines, utility lines, cleaning lines, and drain lines — often in close proximity.
ASME A13.1 as the Starting Point
ASME A13.1 still applies in food and beverage facilities. The same seven color categories cover most of your piping:
| Color | Background | Text | Typical Food Plant Use |
|---|---|---|---|
| Green / White | Green | White | Potable water, cooling water, chilled water |
| Yellow / Black | Yellow | Black | Flammable gases (natural gas, propane) |
| Red / White | Red | White | Fire suppression systems |
| Orange / Black | Orange | Black | Toxic or extra-hazardous chemicals |
| Blue / White | Blue | White | Compressed air |
| Brown / White | Brown | White | Combustible fuels, steam |
| Purple / White | Purple | White | Reclaimed / non-potable water |
For food and beverage plants, green-on-white is the most common marker because water — in its many forms — dominates the piping. But you need additional labeling to distinguish between types of water and between water and product lines.
Labeling Product Lines
Product lines carry food or beverage materials — raw ingredients, process fluids, finished product, or byproducts. These are the highest-priority lines for identification because a product line mistake can contaminate an entire batch.
ASME A13.1 does not have a dedicated color category for food product lines, so most food plants use one of two approaches:
White background with colored text — Some facilities use a white or light-colored background with text that identifies the specific product (WHOLE MILK, RAW JUICE, SYRUP LINE, etc.). This stands out visually from all the standard ASME color backgrounds.
Color-coded by product type — Larger operations sometimes assign specific colors to specific product streams. For example, red labels for tomato product lines, yellow for citrus, white for dairy. This is a facility-specific convention and must be documented in the facility's pipe marking policy.
Whatever approach you choose, every product line should carry:
- The product name or code
- Flow direction arrows
- Any critical handling notes (ALLERGEN RISK, KEEP COLD, PASTEURIZED, etc.)
Allergen identification is critical. Lines carrying nut-based products, dairy, gluten-containing materials, or other major allergens should be clearly marked as such. FDA's Food Allergen Labeling and Consumer Protection Act makes allergen cross-contact a serious compliance issue.
CIP (Clean-In-Place) Line Marking
CIP systems circulate hot water, caustic cleaning solutions, and acid rinses through product piping to sanitize the lines without disassembly. CIP lines must be clearly marked because:
- CIP chemicals (caustic soda, nitric acid) are hazardous — yellow/black or orange/black ASME markers apply
- Operators must never confuse a CIP return line with a product line
- CIP supply and return lines are often physically close to product lines
Best practice: Mark CIP chemical supply lines with yellow/black (hazardous) ASME markers plus an additional "CIP CHEMICAL" or "CIP SUPPLY" text label. Mark CIP return lines with a complementary color and "CIP RETURN" text. Some facilities use a consistent stripe color (such as yellow) on all CIP-related lines as a secondary visual cue.
For CIP water rinse lines that eventually connect to potable water, use green/white ASME markers with "CIP RINSE" text to distinguish from direct potable water service.
Steam and Hot Water in Food Facilities
Steam is used throughout food processing — for cooking, sterilization, blanching, and HTST pasteurization. ASME A13.1 designates brown/white for steam supply.
In food facilities, be specific with steam labels. Call out:
- Culinary steam (steam intended for direct food contact or food zone use — must meet 3-A Sanitary Standards)
- Plant steam (general facility heating — not food contact)
- Condensate return (green/white — often potable quality)
- Boiler feedwater (green/white)
Culinary steam deserves special attention. It must be generated from potable water and often passes through separators and filters. Labeling it distinctly from plant steam prevents cross-connection that could introduce boiler treatment chemicals into food contact areas.
Compressed Air: Food Grade vs. Plant Air
Compressed air in food and beverage plants comes in two very different grades:
Food-grade compressed air (sometimes called "food contact" air) is oil-free, filtered to 0.01 micron or finer, and meets stringent purity requirements. It may directly contact food product. This air meets ISO 8573-1 Class 1 or 2 standards.
Plant compressed air is standard shop air used for pneumatic tools, actuating valves, and general facility use. It may contain oil mist and particulates not acceptable in food zones.
Both use blue/white ASME A13.1 markers, but the labels must distinguish between them. Mark food-grade lines as "FOOD GRADE AIR" or "OIL-FREE AIR." Mark plant air as "PLANT AIR" or "INSTRUMENT AIR." Never allow cross-connection between the two systems.
Sanitary Drains and Waste Lines
Sanitary drains — floor drains, equipment drains, and product waste lines — carry contaminated water, food waste, and CIP effluent. They must be clearly identified to prevent operators from assuming drain water is usable process water, and to support facility hygiene documentation.
ASME A13.1 does not have a dedicated drain color, so most food plants use one of these approaches:
- Gray/white labels with "DRAIN" or "SANITARY DRAIN" text (gray is a common non-ASME convention for wastewater and drain lines)
- Brown/white with specific text identifying drain service
- Custom color designated in the facility's pipe marking policy
Regardless of color, label sanitary drain lines with the drain zone or discharge point. In USDA-inspected facilities, drains connected to inspected areas may need specific documentation.
Material Considerations in Food and Beverage Pipe Marking
Pipe marker material matters in food plants more than most other facilities. The reasons:
Wash-down areas. Food processing areas are regularly hosed down with water and cleaning chemicals. Vinyl markers will lift and peel if the adhesive is not rated for wet environments. Use polyester pipe markers with aggressive wash-down adhesive.
Chemical exposure. CIP chemicals, sanitizers (chlorine, quaternary ammonium), and acid rinses contact pipe surfaces and labels. Polyester or FRP markers resist these chemicals. Standard vinyl does not.
Temperature extremes. Steam lines, pasteurizers, and cook tunnels run hot. Refrigerated lines and cold storage pipes run cold. Choose materials rated for the actual surface temperature of each pipe.
No loose parts. In food zones, labels must not have loose edges or pieces that could become physical contaminants in product. All markers should be fully adhered with no lift at edges. Inspect regularly and replace any partially delaminated labels.
FSMA and Pipe Marking Documentation
Under FDA's FSMA Preventive Controls for Human Food rule (21 CFR Part 117), facilities must conduct hazard analysis and implement preventive controls. Pipe labeling is part of your facility's preventive controls documentation.
Specifically, your HACCP or food safety plan should include:
- A piping schematic showing all labeled lines
- The pipe marking standard your facility follows (ASME A13.1 plus any facility-specific additions)
- A procedure for annual pipe marker inspection and replacement
- Documentation of any allergen or CIP pipe marking conventions
During an FDA inspection or third-party food safety audit, inspectors will walk process areas and verify that piping is correctly labeled and that labels match the facility's piping diagrams. Missing or incorrect markers can result in findings or corrective action requests.
USDA Requirements for Inspected Facilities
USDA-inspected facilities (meat, poultry, egg products) must comply with 9 CFR Part 416, the Sanitation Performance Standards. Part 416.2(e) requires that equipment and facilities be maintained to prevent conditions that could lead to adulteration.
While 9 CFR 416 does not specify pipe marker colors, USDA inspectors (Food Safety and Inspection Service — FSIS) evaluate piping identification as part of sanitation verification. Facilities with unclear or missing pipe labeling have received FSIS Noncompliance Records (NRs) that required corrective action.
Best practice in USDA facilities: follow ASME A13.1 for all utility piping, add product-specific labels for product lines, and maintain a piping diagram on file that can be shown to FSIS inspectors on request.
Building Your Food Facility Pipe Marking Program
A complete pipe marking program for a food or beverage plant includes:
Step 1: Inventory all piping. Walk every process area, utility room, and mechanical space. List every pipe run by fluid, direction, diameter, and surface condition.
Step 2: Assign colors and labels. Apply ASME A13.1 colors for utilities. Add facility-specific product, CIP, and drain labels following your documented convention.
Step 3: Select the right materials. Use polyester for wet areas, wash-down zones, and chemical exposure. Use aluminum for steam and high-temperature lines. Document your material standards.
Step 4: Install markers at required intervals. ASME A13.1 requires markers at valves, fittings, and at intervals sufficient so at least one marker is visible from any direction of approach. In food plants, also mark at any point where a line passes through a wall or floor into another zone.
Step 5: Create and maintain piping diagrams. Keep your facility piping schematics updated. Auditors and inspectors will ask to see them.
Step 6: Schedule annual audits. Inspect all markers annually. Replace faded, peeled, or damaged labels. Update labels when pipe services change.
Shop Food and Beverage Pipe Markers at Print Pro AZ
Print Pro AZ supplies pipe markers in every ASME A13.1 color combination. We offer custom text options so you can specify CULINARY STEAM, FOOD GRADE AIR, CIP RETURN, ALLERGEN RISK, and any other custom label your facility's program requires. All markers are available in polyester for wash-down environments.
Need help building a pipe marking program for your food plant? Contact us with your facility type and pipe inventory and we will help you select the right labels and materials.
Frequently Asked Questions
Is ASME A13.1 required in food and beverage facilities? ASME A13.1 is not a federal law, but it is widely adopted as the industry standard and referenced by OSHA and insurance underwriters. Most food and beverage facilities follow it as the baseline and add facility-specific conventions for product, CIP, and drain lines.
What color should product lines be in a food processing plant? ASME A13.1 does not define a product line color. Most food plants use white-background labels with specific product text, or assign custom colors documented in their pipe marking policy. Consistency within the facility matters most.
Do pipe markers need to be food-safe materials? In food contact zones, labels should not have loose parts that could become physical contaminants. Polyester markers with fully adhered edges are recommended. In food zones where markers could contact product directly, ask your supplier about food-safe compliant materials.
How often should pipe markers be inspected in food plants? Annual inspection is best practice. In wash-down areas or areas with heavy chemical exposure, quarterly checks are prudent. Replace any markers that are lifting, faded, or damaged.
What is culinary steam and how should it be marked? Culinary steam is steam that directly contacts food or food-contact surfaces. It must meet strict purity standards (3-A Sanitary Standard No. 609). Mark it as "CULINARY STEAM" in addition to the standard brown/white ASME A13.1 color to distinguish it from plant steam.
Can I use the same pipe markers for CIP lines and product lines? No. CIP lines carry hazardous cleaning chemicals and must be clearly distinguished from product lines. Use ASME yellow/black or orange/black for CIP chemical lines and add "CIP SUPPLY" or "CIP RETURN" text. Never use the same color coding for both product and CIP service.
