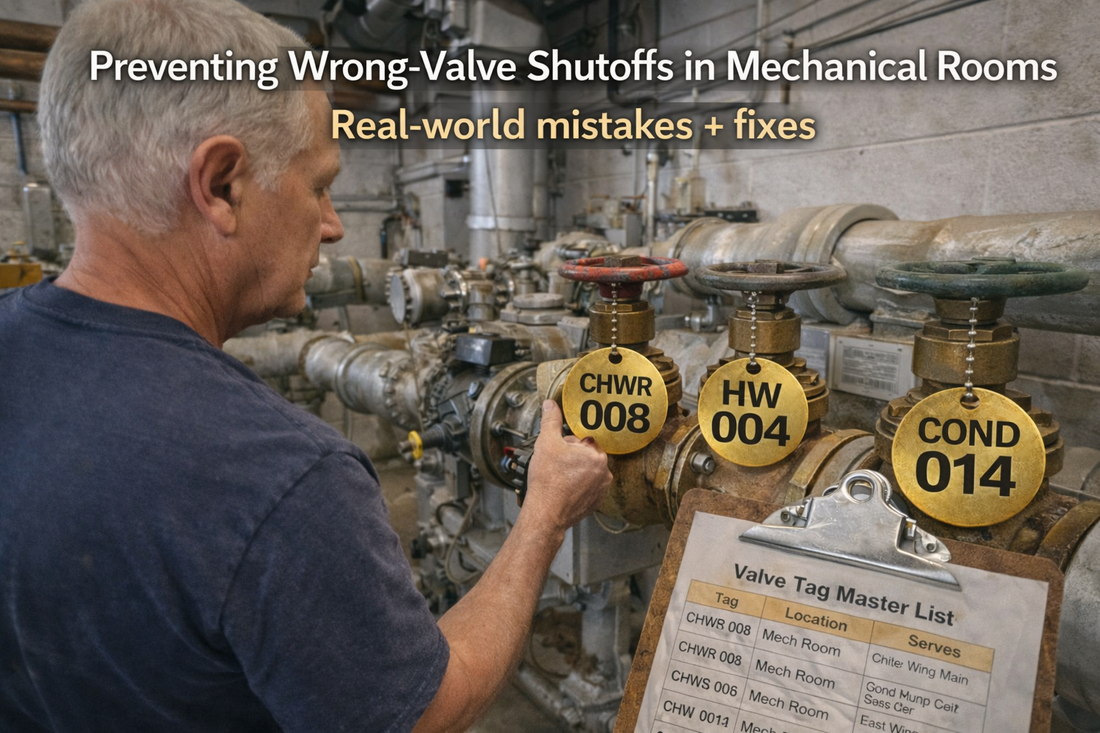

Preventing Wrong-Valve Shutoffs in Mechanical Rooms
Real-world mistakes and simple fixes that save time, money, and headaches
Wrong-valve shutoffs happen all the time. A tech is in a rush, the mechanical room is crowded, and multiple valves look the same. One wrong turn and the building loses cooling, heat, or hot water in the wrong area.
The worst part is this: most wrong-valve shutoffs are avoidable.
This blog covers the most common real-world mistakes and the simple fixes that keep mechanical rooms organized and service work safe.
Why wrong-valve shutoffs happen
1) Valves are not tagged
If a valve is not labeled, a tech has to guess. That leads to:
-
shutting the wrong branch
-
isolating the wrong coil
-
turning off the wrong pump header
2) Tags exist, but they are unclear
Some tags are vague like “HW” when the building has multiple “hot water” systems. Or the tag numbers repeat in different areas without any system code.
3) Piping is crowded and hard to trace
Mechanical rooms are full of:
-
parallel supply and return lines
-
similar-looking risers
-
insulation covering parts of the valve body
-
pumps, strainers, and bypasses that look identical
4) No master list exists
Even if tags are installed, if nobody has a list or drawing that matches the tags, new techs still have to guess.
Real-world mistakes we see (and what they cause)
Mistake 1: Supply and return are not separated
A tech needs to isolate a coil, but shuts off the return instead of the supply. The result can be:
-
poor flow
-
air problems
-
long restart times
-
complaints that the system “still isn’t working”
Fix: Use clear tags for both sides:
-
CHWS and CHWR for chilled water
-
HWS and HWR for hot water
-
HHWS and HHWR for high temp hot water
Mistake 2: The wrong PRV station valve gets closed
In steam rooms, PRV stations are common. A tech closes the wrong inlet, outlet, or bypass valve and suddenly:
-
steam pressure drops in the wrong zone
-
coils stop heating
-
a bypass creates unstable control
Fix: Tag valves by pressure side and function:
-
HPS for high pressure steam side
-
LPS for low pressure steam side
-
STM for general steam isolation
-
Keep bypass valves clearly identified in the valve list
Mistake 3: Condensate return gets shut off during steam work
A tech wants to isolate steam but shuts off a condensate return valve instead. This can lead to:
-
water backing up in the system
-
trap issues
-
noisy piping
-
equipment not heating correctly
Fix: Tag return-side valves clearly as:
-
COND for condensate
Mistake 4: Reused numbers across different systems
If you have HWS 001 and CHWS 001 in the same room, a tech can easily read the wrong tag in a hurry.
Fix: Either:
-
keep system codes large and bold, or
-
number by system ranges (example: HWS 100–199, CHWS 200–299)
Mistake 5: Tags are installed but not visible
A tag is hidden behind insulation, hanging behind piping, or turned away from the operator. It exists, but it does not help.
Fix: Place tags where a person stands to operate the valve:
-
at the handwheel or handle
-
not buried behind other piping
-
not rubbing constantly on hot pipe or sharp edges
The simple fixes that prevent most wrong shutoffs
Fix 1: Use a clean tagging standard
A good standard has:
-
System code: CHWS, CHWR, HWS, HWR, STM, COND, GAS, etc.
-
Unique number: 001, 002, 003…
-
Consistent placement: always at the operator
If someone can walk in and read the system and number in 2 seconds, you are doing it right.
Fix 2: Tag the “critical valves” first
You do not need to tag every valve on day one. Start with the valves that cause the biggest problems when touched:
-
main headers (plant supply and return)
-
major branches to wings/floors
-
pump suction and discharge isolation
-
PRV station valves
-
coil isolation valves in key AHUs
-
condensate return mains and pump valves
-
gas shutoffs
This gives you the biggest improvement fast.
Fix 3: Create a simple valve tag master list
This is the part that turns tags into a real system.
A basic spreadsheet is enough:
-
Tag number
-
Location
-
What it serves
-
Notes (normally open, locked open, etc.)
Example:
-
CHWS 012 – Mech Room – AHU-2 chilled water coil
-
HWR 014 – Roof – East wing heating return
When a tech has a question, the list answers it.
Fix 4: Match valve tags with pipe identification
Valve tags work best when the nearby pipe is also identified. If the pipe says CHWS and the tag says CHWS, there is no guesswork.
This matters most on parallel runs where supply and return are close together.
Fix 5: Train your team on the meaning of each code
Short codes are only helpful if everyone agrees on what they mean.
Example standards:
-
HW means heating hot water, not domestic
-
DHW is domestic hot water
-
CHWS is chilled water supply
-
CHWR is chilled water return
Write this standard down and keep it in the O&M binder or maintenance folder.
Stock vs custom valve tags (what to use)
If you want a fast, standard setup for common system codes, start with stock tags.
Stock Valve Tags: https://printproaz.com/collections/stock-valve-tags
If you need special abbreviations, custom numbering, departments, or extra text, custom tags are the better fit.
Custom Valve Tags: https://printproaz.com/collections/custom-valve-tags
Final tip
Most wrong-valve shutoffs happen because people are forced to guess. A clear tag system removes guessing.
If you want the simplest plan:
-
Choose your system codes
-
Number valves in a clean sequence
-
Tag the critical valves first
-
Build a master list and keep it updated
Mechanical rooms run smoother when valves are easy to identify.
