Duct and HVAC Marking Requirements: A Complete Guide



When most people think about pipe marking, they picture round pipes in a mechanical room. But ductwork — the rectangular and round sheet metal systems that carry air throughout buildings — needs clear labeling too. Unlabeled ductwork creates real problems: technicians balancing air systems open the wrong dampers, maintenance crews cut into pressurized supply ducts thinking they are return plenums, and facilities fail inspections when duct systems cannot be traced.

The good news is that ASME A13.1 covers ductwork along with piping. The same standard that governs pipe marker colors and sizing also applies to duct and HVAC systems. This guide explains everything you need to know to label your ductwork correctly.

---

Does ASME A13.1 Apply to Ductwork?

Yes. ASME A13.1-2020 covers "piping systems" broadly, and the standard explicitly includes duct systems that carry gases — including air. The standard applies to any duct system in an industrial, commercial, or institutional facility.

The same rules apply:

• Color coding by fluid or gas category
• Minimum label size based on duct outside diameter or width
• Placement at valves, dampers, equipment connections, and at intervals along long runs
• Flow direction arrows on every label

The one key difference is geometry. Pipes are round. Ducts are often rectangular. ASME A13.1 accounts for this — the "pipe outside diameter" measurement used to determine label size applies to the largest cross-sectional dimension of a rectangular duct.

---

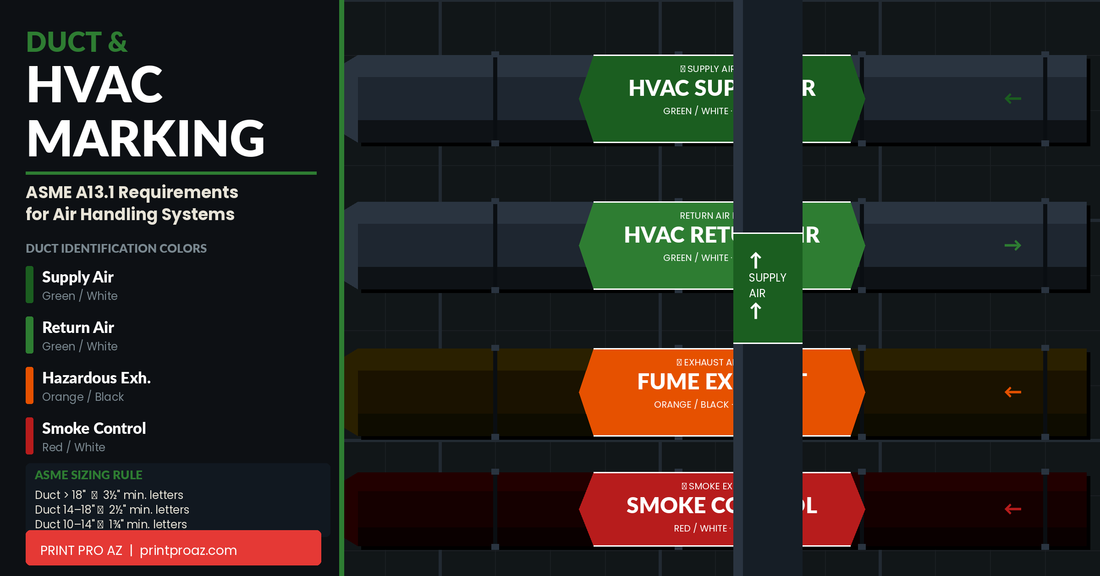

ASME A13.1 Color Codes for HVAC Ductwork

The standard's seven color categories cover all common duct types:

In commercial HVAC systems, green/white is the most common color because most duct carries supply, return, or exhaust air. However, industrial facilities have a much wider range of duct types — and getting the color right matters for safety.

---

Labeling Supply, Return, and Exhaust Separately

In commercial and institutional buildings, the three main duct types are:

Supply air ducts — carry conditioned air from the air handling unit (AHU) to occupied spaces. These should be labeled green/white with "SUPPLY AIR" text and a flow direction arrow pointing away from the AHU.

Return air ducts — carry air back from occupied spaces to the AHU. Label green/white with "RETURN AIR" text and a flow direction arrow pointing toward the AHU.

Exhaust/relief air ducts — carry air from the building to the outside. Label green/white with "EXHAUST AIR" or "RELIEF AIR" and a flow direction arrow pointing toward the exhaust fan or louver.

The flow direction arrow is critical in duct marking because supply and return air look identical inside the duct. Without arrows, technicians working in mechanical rooms or above ceilings cannot tell which direction air is moving — which makes balancing, troubleshooting, and air quality work much harder.

---

Industrial and Process Exhaust Ducts

Industrial exhaust systems remove fumes, vapors, dust, and contaminated air from process areas. These systems often carry hazardous materials and require more specific labeling than standard HVAC.

Fume hood exhaust — carries chemical vapors from laboratory or industrial fume hoods. Depending on the chemicals exhausted, use orange/black (toxic or hazardous concentrations) with specific chemical or process identification in the label text (e.g., "SOLVENT EXHAUST — FUME HOOD 3").

Dust collection ducts — carry airborne particulates. If the dust is combustible (wood dust, grain dust, metal dust), this is a fire and explosion hazard. Label yellow/black for combustible dust systems and include the dust type in the label text.

General industrial exhaust — carries general contaminants from welding, machining, or other processes. Use green/white for general ventilation exhaust or orange/black where hazardous concentrations may be present.

Acid fume exhaust — from acid baths, plating operations, or chemical processes. Label orange/black with specific acid identification. These systems often use fiberglass ductwork to resist corrosion, and FRP labels match the durability of the duct material.

---

Kitchen Exhaust and Grease Ducts

Kitchen exhaust systems in commercial cooking facilities require special attention. Grease-laden exhaust is a fire hazard — these systems are governed by NFPA 96 (Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations).

For kitchen exhaust duct labeling:

• Use brown/white ASME markers (these ducts often have heat from cooking equipment)
• Label clearly as "KITCHEN EXHAUST" or "GREASE EXHAUST"
• Mark the location of grease filters, grease traps, and access panels
• Mark the fire suppression system connections on the duct

Kitchen exhaust ducts should also be marked with cleaning interval information. NFPA 96 requires periodic cleaning of grease ducts based on usage. Some facilities add a small secondary label noting the last cleaning date and required frequency.

---

Smoke Control and Fire/Smoke Damper Systems

Buildings with smoke control systems — pressurized stairwells, dedicated smoke exhaust shafts, or smoke-purge systems — have specialized ductwork that must be clearly labeled.

Smoke exhaust ducts carry smoke out of the building during a fire event. They are typically red/white (fire system) and should be labeled "SMOKE EXHAUST" with clear flow direction arrows.

Stairwell pressurization ducts deliver positive pressure air into exit stairwells to prevent smoke infiltration during evacuation. Label red/white as "STAIRWELL PRESSURIZATION" or "SMOKE CONTROL."

Fire/smoke dampers within ducts must be labeled at their location. Each damper should have an identification label that matches the building's fire/smoke damper schedule — typically a tag number or zone designation that cross-references the fire protection drawings. Building codes (including NFPA 101 and IBC) require that fire/smoke dampers be accessible and identifiable for testing and maintenance.

---

HVAC Duct Marker Sizing Requirements

ASME A13.1 specifies label sizes based on the largest cross-sectional dimension of the duct (for rectangular ducts) or the outside diameter (for round ducts):

Most commercial HVAC ductwork falls in the 12–48 inch range, which means you will typically need labels with 1¾ to 3½ inch letter height. Labels should wrap around the duct when possible, or be applied to multiple sides of rectangular duct so they are visible from multiple directions.

---

Duct Marker Placement Rules

ASME A13.1 requires duct markers at:

• Every change of direction (elbows, tees, transitions)
• Every damper, volume control box, or VAV terminal — mark upstream of the device
• Every penetration through walls, floors, and ceilings — mark on both sides
• At connections to air handling units, fans, and rooftop units
• At intervals along long duct runs — at minimum, a marker should be visible from any point along the duct run

In mechanical rooms with complex overhead ductwork systems, increase marker frequency. Every duct visible from standing height should have at least one marker visible without having to move or look around an obstruction.

For above-ceiling duct systems, mark at each access point and at any location where maintenance personnel would likely enter the ceiling space. Technicians working above drop ceilings need to be able to identify duct systems without a full set of drawings.

---

Above-Ceiling and Concealed Duct Marking

Above-ceiling duct marking is often overlooked — and then fails during inspections. Just because the ductwork is out of sight does not mean it is out of scope.

The practical standard: if a qualified person can reasonably access a section of ductwork — through a ceiling access panel, in a crawlspace, or in a plenum — that section should be labeled.

For plenum-rated ceiling spaces where ducts run above drop ceilings, mark all ducts at each access panel location. Include the duct type, flow direction, and zone served if space allows. This helps HVAC technicians navigate above-ceiling spaces during commissioning, maintenance, and troubleshooting.

---

Label Materials for Ductwork

The right label material depends on where the duct is located:

Interior conditioned spaces — standard vinyl labels work well. Duct surfaces stay dry and temperatures remain moderate.

Mechanical rooms — use polyester or premium vinyl. Mechanical rooms can have temperature swings, occasional moisture, and cleaning chemical exposure.

Exterior or rooftop ductwork — use aluminum or UV-resistant polyester. UV exposure will fade standard vinyl labels within a year or two.

High-temperature ducts (exhaust ducts from ovens, kilns, or industrial processes) — use aluminum with mechanical attachment. Heat transfer from hot exhaust ducts will cause adhesive failure on vinyl labels.

Fiberglass ductwork (common in lab and chemical exhaust systems) — adhesive may not bond well to smooth FRP surfaces. Use strap-on labels or labels designed specifically for FRP adhesion. Consult your label supplier about adhesive compatibility before applying to fiberglass duct.

---

SMACNA and Other References

The Sheet Metal and Air Conditioning Contractors' National Association (SMACNA) publishes installation standards widely used in commercial and industrial HVAC construction. SMACNA does not publish a competing duct marking standard — instead, it references ASME A13.1 for identification requirements. On projects specifying SMACNA compliance, ASME A13.1 duct marking satisfies the identification requirements.

Some projects also reference ASHRAE Guideline 4 (Preparation of Operating and Maintenance Documentation for Building Systems), which recommends coordinating field labels with O&M documentation — useful for facility managers who need field labels to match system drawings and manuals.

---

Shop Duct Markers at Print Pro AZ

Print Pro AZ produces duct and pipe markers in every ASME A13.1 color combination, in sizes appropriate for ductwork from 2 inches to over 48 inches. We offer wrap-around duct markers, adhesive-backed flat labels, and strap-on markers for ductwork of any size and configuration.

Need custom text for specific air systems, zones, or equipment IDs? We produce fully custom duct markers to match your facility's labeling program.

👉 Shop Duct and Pipe Markers →

---

Frequently Asked Questions

Are duct markers required by OSHA? OSHA does not specifically mandate duct markers by name, but 29 CFR 1910.261 references ASME A13.1 for piping identification, and OSHA's General Duty Clause requires employers to protect workers from recognized hazards — which includes unlabeled hazardous exhaust and process duct systems. Many jurisdictions and insurance underwriters effectively require ASME A13.1 compliance for all duct systems.

What color should supply air ducts be? Supply air ducts should be labeled green/white per ASME A13.1, which covers safe materials including air. The label text should specify "SUPPLY AIR" to distinguish it from return and exhaust ducts.

Do I need to mark ducts that are hidden above a dropped ceiling? Yes. Any ductwork accessible to qualified personnel should be labeled. Mark at every access panel location and at every change of direction or damper location above the ceiling.

How big does the label have to be on a 24-inch duct? Per ASME A13.1, a duct with a largest cross-sectional dimension over 18 inches requires labels with a minimum letter height of 3½ inches and a minimum label length of 32 inches.

What label material should I use on exterior ductwork? Use aluminum labels for outdoor ductwork. They resist UV fading, temperature extremes, and moisture. UV-resistant polyester is an acceptable alternative for moderate climates. Avoid standard vinyl outdoors — it fades and peels within 1–3 years.

Do kitchen exhaust ducts need special labels? Yes. Kitchen exhaust ducts carry grease-laden air and are a fire hazard governed by NFPA 96. Label them brown/white with "KITCHEN EXHAUST" or "GREASE EXHAUST" text, and mark the locations of grease filters, access panels, and fire suppression connections.
