Buying the right pipe markers is only half the job. Installing them correctly determines whether they stay legible and secure for years — or start peeling and fading within months. Poor installation wastes money on labels that have to be replaced and creates compliance gaps when markers become unreadable.

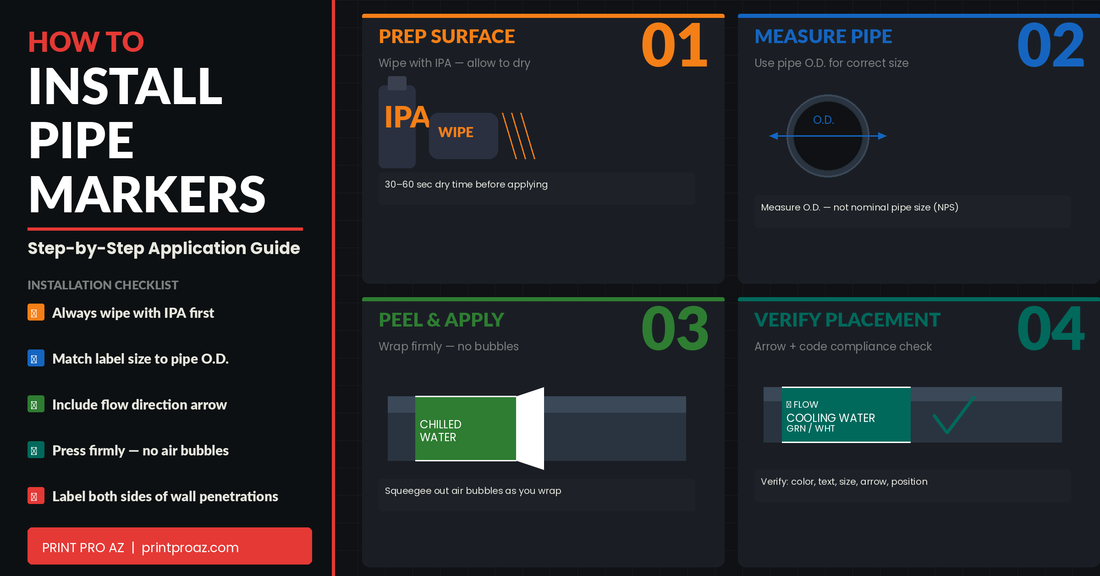

This guide walks through the complete pipe marker installation process, from surface preparation to final placement, with techniques that work whether you are labeling a handful of pipes in a mechanical room or rolling out a facility-wide program.

---

Step 1: Plan Before You Label

Before you open a single marker, take time to plan. Walking a facility with a note pad (or tablet) to inventory pipe systems before ordering labels saves significant time and avoids the most common installation mistake — realizing mid-project that you have the wrong sizes, colors, or text.

During your planning walkthrough, record for each pipe run:

• Fluid or gas carried — what ASME A13.1 color category applies?
• Pipe outside diameter (O.D.) — what label size does ASME require?
• Surface condition — is the pipe clean metal, insulated, painted, corrugated, or greasy?
• Temperature — does the pipe surface get hot enough to affect adhesive?
• Environment — is the pipe in a wet area, outdoors, or exposed to chemicals?
• Flow direction — which way does the fluid move?

This information drives your material and size selection. Do this once and your installation goes smoothly. Skip it and you end up with too many labels in one size, not enough in another, and labels that won't stick.

---

Step 2: Choose the Right Label Size

ASME A13.1 sets minimum letter heights and minimum label lengths based on pipe outside diameter. The label must be large enough that someone can read it from a normal working distance — which the standard defines as about 5 feet.

Measure the pipe outside diameter — not the nominal pipe size (NPS). A 2-inch NPS pipe has an actual O.D. of 2.375 inches. A 4-inch NPS pipe is actually 4.5 inches O.D. The O.D. determines label size, not the NPS designation.

For insulated pipes, measure the outer surface of the insulation jacket — that is the surface the label will wrap around.

---

Step 3: Surface Preparation

Surface prep is the most commonly skipped step — and the number one reason labels fail prematurely. Adhesive-backed labels cannot bond through oil, grease, dust, rust, or loose paint. Any contamination between the label and the pipe surface will cause the adhesive to let go over time.

Cleaning the Surface

For metal pipes, wipe down the label area with isopropyl alcohol (IPA) using a clean rag or lint-free wipe. Let it dry fully — typically 30 to 60 seconds — before applying the label. IPA removes oil, grease, and fingerprints that are invisible to the naked eye but defeat adhesive bonding.

For painted pipes, check the paint for adhesion first. Press a strip of masking tape to the surface and pull it off. If paint lifts with the tape, the paint is loose and will pull the label off eventually. Scrape or sand the loose paint before labeling, or switch to a strap-on mechanical label for that location.

For insulated pipes, clean the jacket surface with IPA. Foam insulation with an aluminum or foil jacket bonds well. Fiberglass jacketing can be more challenging — test an adhesive sample first. Foam rubber insulation (commonly used on refrigerant lines) has a soft, slightly textured surface that reduces adhesive contact area; strap-on labels are often more reliable than adhesive-backed labels on foam rubber.

For pipes with oil, grease, or heavy contamination, use a degreaser before the IPA wipe. Simple degreasers like citrus-based cleaners work well. Follow with an IPA wipe and allow to dry fully.

Temperature Considerations

Pipe surface temperature affects both application and long-term adhesion. Most label adhesives bond best between 50°F and 100°F (10°C to 38°C).

Never apply labels to cold pipes with active condensation — the moisture creates a barrier between the adhesive and the pipe surface. On refrigerant lines and chilled water pipes, wait for the pipe to be taken out of service and warm to ambient temperature before labeling, or wipe the surface dry immediately before application.

Do not apply labels to hot pipes. On steam lines or process pipes that run above 120°F, let the pipe cool or schedule labeling during a planned shutdown. A label applied to a 200°F surface may appear to bond initially, but as the adhesive heats and softens, it will slip or fail.

---

Step 4: Apply the Label

Wrap-Around Labels (Adhesive-Backed)

Wrap-around labels are the most common type. They wrap completely around the pipe, creating a continuous band that is visible from any direction.

Application technique:

1. Peel the backing paper back about 2 inches on one end to expose the adhesive.
2. Position the exposed end on the pipe, aligning the label level and centered on the pipe.
3. Press the exposed end firmly onto the pipe surface.
4. With one hand holding the label against the pipe, use the other hand to slowly peel the backing paper while pressing the label onto the pipe surface continuously around the circumference.
5. For smaller pipes (under 4 inches), you can complete the wrap in one smooth motion.
6. For larger pipes, work in sections — press a few inches, peel more backing, press the next section.
7. When the leading and trailing edges meet or overlap, press firmly to complete the bond.
8. Run your thumb or a squeegee firmly over the entire label to remove air bubbles and ensure full contact between adhesive and surface.

Avoiding bubbles: Apply with slight tension on the label as you work around the pipe. Do not stretch the label — just keep it taut. Wrinkles and bubbles form when label material bunches up or when you try to go too fast.

Overlapping edges: On large-diameter pipes where both ends of the label do not meet, the label should have an overlap zone — where the far end of the label overlaps the near end by at least ½ inch. Press firmly at the overlap seam to prevent lifting.

Strap-On Labels (Band Attachment)

Strap-on markers use a plastic or stainless steel banding strap to hold the label panel against the pipe. They are the right choice when:

• The pipe surface is too rough, corrugated, or dirty for reliable adhesive bonding
• The pipe runs too hot for adhesive labels
• The pipe has foam rubber insulation that does not bond well
• You need the ability to replace labels without disturbing the pipe surface

Application technique:

1. Thread the banding strap through the label panel backing slots.
2. Wrap the strap around the pipe.
3. Insert the strap end through the locking mechanism.
4. Pull the strap tight enough to hold the label firmly against the pipe — snug but not so tight that it dents soft insulation.
5. Trim the excess strap tail with cutters.

For stainless steel banding, use a banding tool for consistent tension. For plastic zip-tie style bands, pull by hand until snug, then verify the label is centered and readable before locking.

Tag-Style Labels

Wire-on and bolt-on tag markers are used at valves, pumps, and fittings where the geometry does not allow a wrap-around label. Thread the wire or cable tie through the tag hole and attach to the valve body or adjacent pipe bracket. Do not use loose tags on hot pipes — the metal tag can contact the pipe surface and conduct heat that could injure someone reaching for it.

---

Step 5: Add Flow Direction Arrows

Every pipe marker must include a flow direction arrow. This is an ASME A13.1 requirement, not optional.

If your pipe markers come pre-printed with flow arrows as part of the label design, make sure the arrow points in the correct direction before you apply the label. There is no such thing as a generic directional label — check the flow direction against your P&ID or from direct observation before sticking anything.

For pipes with two-way or variable flow, use a bidirectional arrow symbol. Mark the label text appropriately (e.g., "CHILLED WATER — BIDIRECTIONAL FLOW").

If your pipe markers do not include flow arrows, apply separate arrow labels directly adjacent to the main marker — on the upstream and downstream sides.

---

Step 6: Verify Placement per ASME A13.1

Once labels are applied, verify that you have met the ASME A13.1 placement requirements:

• At every valve, fitting, and tee
• At every penetration through walls, floors, and ceilings — on both sides
• At every connection to equipment (pumps, tanks, heat exchangers, vessels)
• At intervals along straight runs so at least one label is visible from any direction of approach
• At access panels covering concealed pipe runs

For straight pipe runs in a mechanical room, the standard's intent is that someone entering from any direction should be able to read a marker without walking more than a reasonable distance. In practice, intervals of 25–50 feet are common for most facilities. High-traffic maintenance areas and process facilities may require shorter intervals.

---

Common Installation Mistakes to Avoid

Applying to a dirty or oily surface. This is the top cause of early label failure. Always wipe the surface with IPA and allow it to dry before applying.

Labeling a cold, condensation-covered pipe. The moisture defeats the adhesive. Wipe dry and apply immediately, or take the pipe out of service and let it warm up.

Wrong label size. Letter height and label length must meet ASME minimums for the pipe diameter. Undersized labels fail inspections and are harder to read at a distance.

No flow direction arrow. Every label needs one. Do not skip it.

Labels applied crooked. A label that runs diagonally around the pipe looks unprofessional and may be harder to read. Take a moment to align the leading edge level before pressing down.

Labeling over old labels. Removing old labels and re-prepping the surface gives far better adhesion than stacking a new label over an old one. Old labels under new ones create an uneven surface, reduce the bond area, and the old label's edge may begin to lift and peel the new label off with it.

Skipping concealed runs. Pipes above ceilings, in chases, and behind access panels need labels too. Every accessible pipe run must be labeled.

---

Labeling After Maintenance and Repairs

After any pipe repair, modification, or service change, verify that the labels in the affected area are still accurate, securely attached, and unobstructed. It is common during maintenance work for labels to be removed, covered, painted over, or damaged. Build a "post-maintenance pipe label check" into your work order completion process.

If a pipe's fluid service changes — for example, a line that carried compressed air is repurposed for nitrogen — remove and replace all markers immediately. Operating a pipe with the wrong label is more dangerous than having no label at all, because it provides incorrect information to anyone working on the system.

---

Shop Pipe and Duct Markers at Print Pro AZ

Print Pro AZ stocks ASME A13.1 pipe and duct markers in every color combination, in all standard sizes, and in the materials you need for your environment. Every label ships ready to apply — no cutting, no printing on-site.

Need to label a whole facility? We can put together a complete pipe marking kit sized and specified to your inventory. Contact us with your pipe sizes and fluid categories and we will build a quote.

👉 Shop Pipe Markers →

---

Frequently Asked Questions

What do I clean pipe surfaces with before applying labels? Isopropyl alcohol (IPA) is the standard surface prep for pipe marker installation. Wipe the pipe surface with IPA on a clean, lint-free rag and allow to dry for 30–60 seconds before applying the label. For heavily contaminated surfaces, use a degreaser first, then follow with an IPA wipe.

Can I apply pipe markers over insulation? Yes. Measure the outer diameter of the insulation jacket and use that to determine the correct label size per ASME A13.1. Clean the insulation jacket surface with IPA before applying. For soft foam rubber insulation, strap-on labels are more reliable than adhesive labels.

What temperature is too hot to apply a pipe marker? Most label adhesives bond best below 100°F. Do not apply labels to pipes running above 120°F. If you need to label a hot pipe, schedule the work during a planned shutdown and allow the pipe surface to cool before applying.

How do I keep labels from peeling at the edges? Thorough surface prep with IPA is the most effective prevention. After applying, run your thumb firmly over the entire label — especially the edges — to ensure full adhesive contact. For high-moisture or chemical environments, ask your supplier about labels with edge-sealed laminates that prevent edge lifting.

How do I remove old pipe markers without damaging the pipe? For adhesive-backed labels, use a heat gun or hair dryer to soften the adhesive, then peel slowly at a low angle. Remove adhesive residue with IPA or an adhesive remover product. Avoid scraping metal pipes with metal tools, which can scratch coatings.

Do pipe markers need to be readable from multiple sides? Yes. ASME A13.1 requires that markers be visible from the normal direction of approach. For large pipes in accessible areas, this means labeling on multiple sides or using a wrap-around label that covers the full circumference so it can be read from any direction.
