Medical Gas Pipe Marking: NFPA 99 and ASME A13.1 Requirements
In a hospital, the wrong gas in the wrong line kills people.
A patient receiving nitrogen instead of oxygen. A surgical team using nitrous oxide through a line they thought was medical air. A technician who accidentally cross-connects oxygen and vacuum during a renovation.
Medical gas pipe marking is not just a code requirement — it is a life-safety system. Every label on every pipe in every healthcare facility is part of what stands between a patient and a catastrophic gas delivery error.
This guide covers NFPA 99 medical gas pipe identification requirements, how they relate to ASME A13.1, and what you need to mark every medical gas pipe system correctly.
Two Standards Govern Medical Gas Pipe Marking
Medical gas pipe systems in healthcare facilities are governed by two overlapping standards:
NFPA 99 (Health Care Facilities Code) — The primary standard for medical gas systems in hospitals, outpatient facilities, dental offices, and other healthcare settings. NFPA 99 establishes specific color codes, label text, and labeling requirements for all medical gas and vacuum systems.
ASME A13.1 (Scheme for the Identification of Piping Systems) — The general pipe identification standard that applies to all building pipe systems. ASME A13.1 provides the sizing chart and placement rules used for medical gas pipe markers.
NFPA 99 takes precedence for medical gas color codes. Where NFPA 99 and ASME A13.1 conflict on color, NFPA 99 wins. In practice, the NFPA 99 color system is more detailed than the ASME A13.1 system and is specifically designed for healthcare applications.

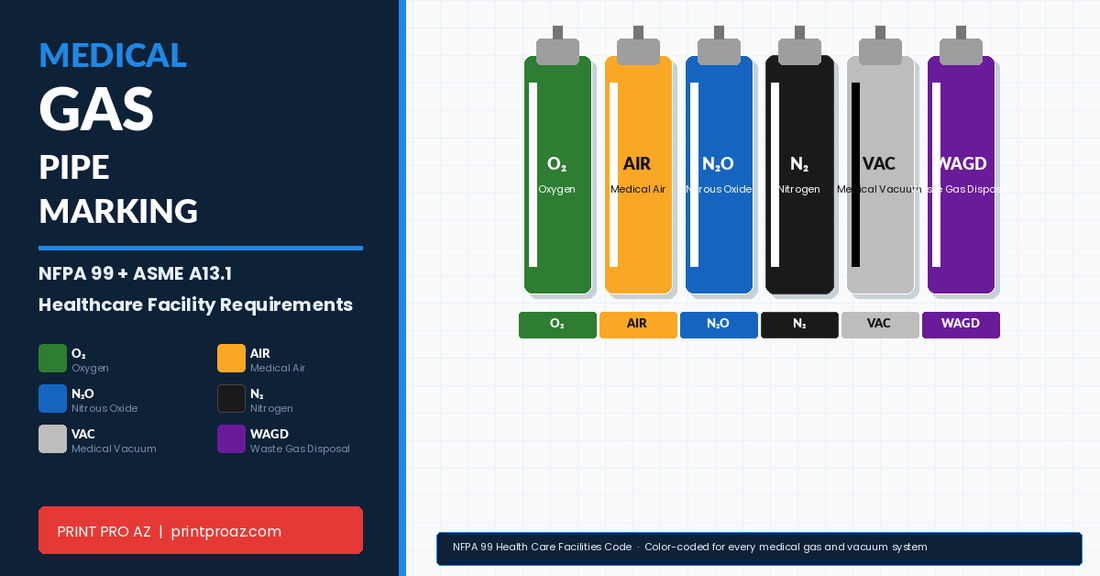

NFPA 99 Color Codes for Medical Gas Piping
NFPA 99 assigns a specific color to each medical gas. These colors are internationally standardized — the same system is used in CGA (Compressed Gas Association) standards in North America and ISO 32 globally.
| Gas | Pipe Marker Color | Common Abbreviation |
|---|---|---|
| Oxygen (O₂) | Green / White | O₂ |
| Medical Air | Yellow / Black | AIR or MED AIR |
| Nitrous Oxide (N₂O) | Blue / White | N₂O |
| Nitrogen (N₂) | Black / White | N₂ |
| Carbon Dioxide (CO₂) | Gray / White | CO₂ |
| Helium | Brown / White | He |
| Medical Vacuum | White / Black | VAC |
| WAGD (Waste Anesthetic Gas Disposal) | Violet / White | WAGD |
| Instrument Air | Yellow / Black | INST AIR |
Important: These colors differ from the ASME A13.1 general industrial color system in some cases. Medical air in NFPA 99 is yellow/black — but yellow/black in ASME A13.1 typically means hazardous materials. In a healthcare facility, always use NFPA 99 colors for medical gas piping.
Medical Gas by Gas Type: What You Need to Know
Oxygen (O₂) — Green / White
Oxygen is the most critical medical gas in any healthcare facility. It's used for patient respiratory support, anesthesia, and emergency care.
Color: Green background, white text.
Label text: OXYGEN or O₂
Oxygen is a powerful oxidizer — it dramatically accelerates the burning of any combustible material. While oxygen itself doesn't burn, even a small leak in an oxygen-enriched environment can turn ordinary materials into fire hazards.
Label oxygen lines with extra care and ensure labels are clearly visible at every access and connection point.
Medical Air — Yellow / Black
Medical air is a specific grade of compressed air that meets pharmacopeial standards for purity, moisture content, and oil content. It is used for patient respiratory support and to power certain medical devices and ventilators.
Color: Yellow background, black text.
Label text: MEDICAL AIR or MED AIR
Medical air must never be confused with instrument air or plant air, which are lower-grade compressed air systems that may contain oil, particulates, or other contaminants. Always use the full label "MEDICAL AIR" — not just "AIR" — to prevent confusion.
Nitrous Oxide (N₂O) — Blue / White
Nitrous oxide is used as an anesthetic agent in surgical and dental procedures. It is also a strong oxidizer.
Color: Blue background, white text.
Label text: NITROUS OXIDE or N₂O
At room temperature, nitrous oxide is a colorless, slightly sweet-smelling gas. A patient or worker in an N₂O-rich environment can lose consciousness quickly without warning. Label all nitrous oxide lines prominently and ensure WAGD (waste gas disposal) lines are fully labeled and operational.
Nitrogen (N₂) — Black / White
Nitrogen in healthcare settings is used to power pneumatic surgical tools and instruments — drills, saws, and similar devices — rather than for patient respiratory support.
Color: Black background, white text.
Label text: NITROGEN or N₂
Nitrogen is an asphyxiant — it displaces oxygen and can cause rapid loss of consciousness in enclosed spaces. A technician who connects a respiratory device to a nitrogen line instead of oxygen or medical air creates an immediately life-threatening situation.
The black/white color and clear "NITROGEN" label text are the primary safeguards against this mistake.
Carbon Dioxide (CO₂) — Gray / White
Carbon dioxide in healthcare is used for insufflation in minimally invasive surgery (laparoscopy), cryotherapy, and some cardiac procedures.
Color: Gray background, white text.
Label text: CARBON DIOXIDE or CO₂
Medical Vacuum — White / Black
Medical vacuum is negative pressure used to aspirate fluids and gases from patients during procedures and recovery.
Color: White background, black text.
Label text: MEDICAL VACUUM or VACUUM or VAC
Medical vacuum is the only medical gas system that carries materials away from the patient rather than delivering gas to the patient. Its unique white/black color helps distinguish it from all positive-pressure gas systems.
WAGD — Violet / White
WAGD (Waste Anesthetic Gas Disposal) systems capture and remove waste gases — primarily nitrous oxide and inhaled anesthetics — from operating rooms and recovery areas.
Color: Violet background, white text.
Label text: WAGD or WASTE ANESTHETIC GAS DISPOSAL
WAGD is one of the newer additions to the NFPA 99 system. Properly labeled WAGD lines help technicians avoid connecting new equipment to the waste gas system instead of the medical air or vacuum systems.
NFPA 99 Specific Labeling Requirements
Beyond the color system, NFPA 99 has additional requirements for medical gas pipe identification:
Labels at each outlet/inlet. Every medical gas outlet in every patient care space (each bed location, each OR zone) must be labeled with the gas name. This applies to zone valve boxes, ceiling columns, and wall-mounted outlets.
Zone valve boxes. Every zone valve box must be labeled with the gas it controls and the area it serves. Zone valve labels must be visible on the outside of the box.
Alarm panels. Medical gas alarm panels must be labeled to identify which gas and which zone each alarm monitors.
Labeling after any renovation or modification. Any time the medical gas system is modified, extended, or altered, all new piping must be labeled before the system is returned to service.
Labeling for verification. NFPA 99 requires that medical gas systems be tested and verified after installation and after any modification. Proper pipe marking is part of the documentation that supports this verification process.
Pipe Marker Sizing for Medical Gas Systems
Medical gas piping is typically small-diameter copper tubing:
- Patient care outlet branches: ¼" to ½" OD
- Zone branches: ¾" to 1½" OD
- Area mains: 1" to 2½" OD
- Building mains from the central supply: 1" to 4" OD
Using the ASME A13.1 size chart for label selection:
| Pipe OD | Label Size |
|---|---|
| ¾" to 2" | 8" × 1⅛" |
| 2½" to 7⅞" | 14" × 2¼" |
For most medical gas piping, the 8" × 1⅛" label is the most common size. Larger building mains may use the 14" × 2¼" label.
Placement Rules for Medical Gas Piping
ASME A13.1 placement rules apply, with NFPA 99 additions:
At the source equipment — Label piping at the oxygen concentrator, liquid oxygen storage tank, medical air compressor, vacuum pump, and all other source equipment.
At every zone valve — Both sides of every zone isolation valve. Label the zone valve box with the gas type and the zone it controls.
At every patient care area entry point — Where medical gas piping enters each patient room, OR, procedure room, or recovery area.
At every wall and floor penetration — Both sides of all penetrations.
At every branch and connection — Label every branch, tee, and connection point.
Every 20–25 feet on straight runs — Medical gas piping typically uses shorter label intervals than other systems — 20–25 feet is common in healthcare settings. Some facilities label at every 10–15 feet in patient care areas.
At all service access panels — Where piping is accessible through a ceiling or wall panel, label on the pipe itself and on the accessible side of the panel.
Who Can Install and Label Medical Gas Systems?
Medical gas systems are not a standard mechanical trade. NFPA 99 requires that medical gas systems be installed, maintained, and tested by qualified personnel who meet specific training and credentialing requirements.
In most states, this means certified medical gas installers under the ASSE 6000 series of medical gas standards, or equivalent state-specific certifications.
This includes the pipe marking. Medical gas pipe markers must be applied correctly as part of a certified installation — not added as an afterthought.
Shop Medical Gas Pipe Markers
Print Pro AZ stocks all NFPA 99 medical gas pipe markers — oxygen, medical air, nitrous oxide, nitrogen, CO₂, medical vacuum, and WAGD — in all standard sizes. Same-day shipping. Made in the USA.
👉 Shop All Medical Gas Pipe Markers → 👉 Need custom text for specialty gases or facility-specific labeling? Order Custom Markers →
Frequently Asked Questions
What standard governs medical gas pipe marking? NFPA 99 (Health Care Facilities Code) is the primary standard for medical gas pipe identification in healthcare facilities. ASME A13.1 provides the sizing and placement rules used alongside NFPA 99.
What color are oxygen pipe markers in a hospital? Medical oxygen pipe markers are green background with white text under NFPA 99.
What color are medical vacuum pipe markers? Medical vacuum pipe markers are white background with black text — unique in the NFPA 99 system to clearly distinguish vacuum (suction) from all positive-pressure gas systems.
What color is medical air in NFPA 99? Medical air uses yellow/black markers in NFPA 99. This is different from the ASME A13.1 industrial system where yellow/black indicates hazardous materials. In a healthcare facility, always use NFPA 99 colors for medical gas piping.
What is WAGD and what color are WAGD pipe markers? WAGD stands for Waste Anesthetic Gas Disposal — the system that captures waste anesthetic gases from operating rooms. WAGD pipe markers are violet background with white text under NFPA 99.
Does NFPA 99 require labels at every outlet? Yes. NFPA 99 requires that every medical gas outlet in every patient care location be labeled with the gas name. This applies to zone valve boxes, ceiling columns, wall outlets, and all other access points.
How often do medical gas pipes need to be labeled? More frequently than typical building systems. Labels should be at every valve, zone valve, branch, penetration, and at intervals of 20–25 feet on straight runs. Some facilities use even shorter intervals (10–15 feet) in patient care areas.
Who can install medical gas pipe markers? NFPA 99 requires that medical gas systems be installed by qualified, certified personnel meeting ASSE 6000 series credentials or state-equivalent requirements. This includes the pipe marking as part of a certified installation.
