Pharmaceutical and Biotech Pipe Marking: cGMP, FDA, and USP Requirements
Pharmaceutical and biotech manufacturing facilities have the most demanding pipe marking requirements of any industry. The stakes are uniquely high: a mislabeled pipe that cross-contaminates a drug product batch could lead to patient harm, a recall, an FDA warning letter, and the shutdown of manufacturing operations.
In pharma and biotech, pipe marking is not just a compliance box to check. It is an active part of contamination control and product quality assurance. This guide covers what ASME A13.1, FDA regulations, cGMP requirements, and USP standards require — and what best practice looks like in a modern pharmaceutical facility.
The Regulatory Framework
Pharmaceutical pipe marking sits at the intersection of multiple overlapping requirements:
FDA 21 CFR Part 211 (Current Good Manufacturing Practice for Finished Pharmaceuticals) — Section 211.68 requires that equipment used in pharmaceutical manufacturing be of appropriate design and "adequately cleaned and maintained." FDA inspectors interpret this to require that all piping systems be clearly identified to prevent mix-ups and cross-contamination.
FDA 21 CFR Part 820 (Quality System Regulation for medical devices) — Similar requirements for medical device manufacturing facilities.
USP <1231> (Water for Pharmaceutical Purposes) — Covers WFI, purified water, and other high-purity water systems. While primarily a quality standard, the system identification requirements it references include pipe labeling.
ASME A13.1 — The baseline pipe marking color and sizing standard, applies in all pharmaceutical facilities.
ISPE Baseline Guides — The International Society for Pharmaceutical Engineering publishes facility design guides widely followed in the industry. These guides include specific pipe marking and system identification recommendations.
ISO 14644 (Cleanroom Standards) — For facilities with cleanroom manufacturing areas, this standard governs what materials and labeling approaches are acceptable inside the controlled environment.
FDA inspectors conducting GMP inspections walk manufacturing and support areas specifically looking at whether utilities and process piping are correctly identified. Failure to properly label piping systems has resulted in FDA 483 observations (inspection findings) and, in serious cases, Warning Letters.
ASME A13.1 in Pharmaceutical Facilities
ASME A13.1 is the required starting point. The same color categories apply:
| Color | Background | Text | Pharmaceutical Application |
|---|---|---|---|
| Green / White | Green | White | WFI, purified water, cooling water, buffer solutions |
| Brown / White | Brown | White | Clean steam, WFI generation steam |
| Blue / White | Blue | White | Compressed air, nitrogen, inert purge gases |
| Orange / Black | Orange | Black | Toxic or IDLH process materials |
| Yellow / Black | Yellow | Black | Natural gas, solvent vapors |
| Red / White | Red | White | Fire suppression systems |
| Purple / White | Purple | White | Non-potable water, wastewater, drain lines |
However, ASME A13.1 color alone is insufficient in pharmaceutical facilities. The color tells you the broad category — green/white for water — but does not distinguish between WFI (the highest-purity pharmaceutical water grade), purified water, USP purified water for irrigation, and ordinary cooling water. All are green/white, but they cannot be confused.
In pharmaceutical facilities, the text on the label is at least as important as the color. Every marker must include the specific system name, and large facilities often include additional qualifiers.

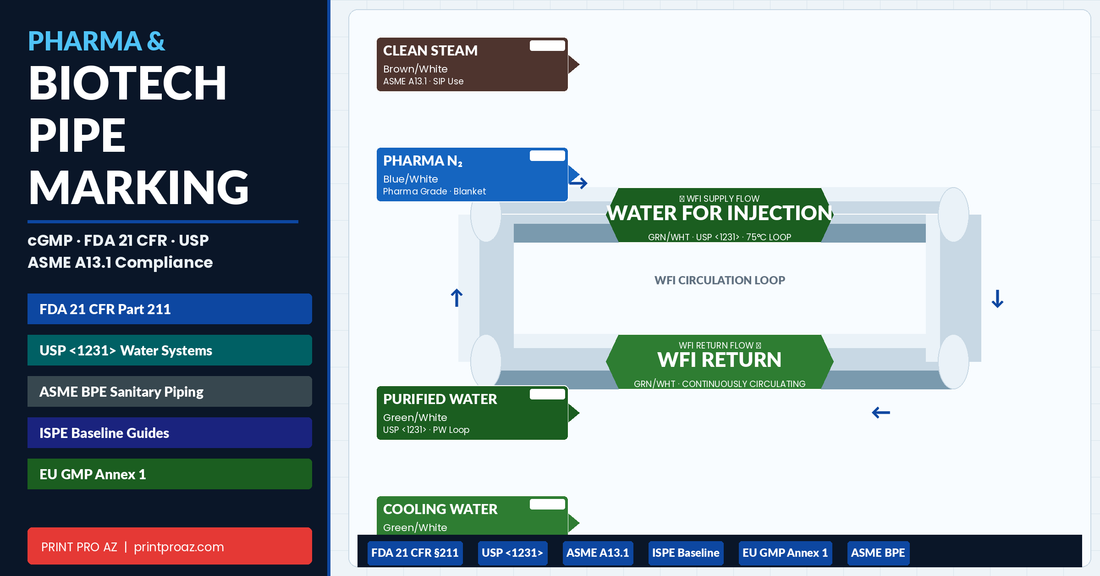

Water System Labeling: WFI, Purified Water, and Clean Steam
Water is the most critical utility in pharmaceutical manufacturing, and the water systems in a pharma facility range from ordinary domestic water to ultra-pure injectable-grade water. Getting these labels right is essential.
Water for Injection (WFI)
WFI is the highest-purity pharmaceutical water grade — it meets USP <1231> and is used to manufacture injectable drugs. It is produced by distillation or membrane technology and distributed in a continuously circulating hot loop to prevent microbial growth.
Labeling requirements for WFI:
- Color: Green/White (ASME A13.1 — safe materials)
- Text: WATER FOR INJECTION or WFI
- Additional text: Loop designation (e.g., WFI LOOP A, WFI SUPPLY, WFI RETURN)
- Flow direction arrow is critical — WFI systems always circulate; arrows confirm loop direction
- Temperature callout recommended: WFI hot loops run at 70–80°C to suppress microbial growth
Purified Water (PW) and USP Purified Water
Purified water meets a lower purity specification than WFI and is used for equipment rinsing, formulation of non-injectable products, and other applications.
- Color: Green/White
- Text: PURIFIED WATER or PW — must be distinct from WFI labels
- Loop designation: PW SUPPLY, PW RETURN, PW LOOP 1, etc.
Clean Steam
Clean steam is pharmaceutical-grade steam used for sterilization-in-place (SIP) of equipment and bioreactors. It is generated from purified water and meets quality requirements that prevent pyrogen and chemical contamination of surfaces it contacts.
- Color: Brown/White (ASME A13.1 — steam)
- Text: CLEAN STEAM or CS — must be distinct from plant steam labels
- Distinguish from: Plant steam (brown/white, labeled PLANT STEAM or PS) — these look identical without text
Clean steam and plant steam must never be confused. Plant steam contains boiler treatment chemicals that would contaminate pharmaceutical equipment if used for SIP. In pharma facilities, clean steam and plant steam markers often use a secondary color band or marker style to make them visually distinct even before reading the text.
Plant Steam
Plant steam is non-pharmaceutical-grade steam used for heating, HVAC, and general utilities.
- Color: Brown/White
- Text: PLANT STEAM or PS
- Pressure and temperature callouts are good practice
Compressed Gas Labeling: Nitrogen, CO₂, and Instrument Air
Pharmaceutical facilities use compressed gases extensively for blanketing, sparging, transfer, and instrument operation. These systems require precise labeling because some gas grades are pharmaceutical-grade (suitable for product contact) and others are not.
Nitrogen
Nitrogen is used for vessel blanketing (preventing oxidation), sparging (removing dissolved oxygen from solutions), and pressurizing transfers.
- Color: Blue/White (ASME A13.1 — inert gas)
- Text: Specify the grade:
- NITROGEN — PHARMA GRADE (suitable for product contact)
- NITROGEN — INSTRUMENT GRADE (non-product contact utility)
- These two grades must never be confused — pharmaceutical-grade nitrogen meets purity requirements for product contact; instrument-grade may not
Compressed Air
Compressed air in pharma facilities follows the same food-grade / plant air distinction as in food and beverage:
- Color: Blue/White
- Text: OIL-FREE COMPRESSED AIR or PHARMA-GRADE AIR (product contact service)
- Text: INSTRUMENT AIR or PLANT AIR (non-product contact)
Carbon Dioxide (CO₂)
CO₂ is used in biotech for pH control in bioreactors and in beverage pharma applications.
- Color: Blue/White
- Text: CARBON DIOXIDE or CO₂, with grade (PHARMA, FOOD, USP)
Process Piping: API, Buffer, and Media Lines
Pharmaceutical manufacturing process piping carries active pharmaceutical ingredients (APIs), buffers, cell culture media, and other product-contact materials. These lines require careful identification:
- Use the ASME A13.1 color category appropriate for the chemical (e.g., orange/black for toxic APIs, green/white for aqueous buffers)
- Always include the specific fluid name — "BUFFER A," "API SOLUTION," "CELL CULTURE MEDIA"
- Include the manufacturing suite or unit operation designation for traceability
- Mark batch number information on process lines where feasible in multi-product facilities
- Include containment level designation for potent compound lines (OEB level, OEL category)
For highly potent APIs (HPAPIs), the pipe marker is part of the containment strategy. HPAPI lines in dedicated suites should be clearly marked with the containment level — many facilities use a supplementary colored band or warning symbol in addition to the ASME marker.
Cleanroom Considerations
In cleanroom manufacturing areas (Grade A/B/C/D per EU GMP Annex 1, or ISO 5/6/7/8), pipe markers must meet specific requirements:
Material compatibility: Labels must not shed particles, fibers, or chemical compounds into the controlled environment. Standard paper-backed labels are not acceptable in cleanrooms. Polyester or aluminum labels are required.
Smooth surfaces: Labels in cleanrooms should have a smooth face that can be wiped down during cleaning. Textured or embossed labels can harbor contamination.
Adhesive compatibility: Adhesive bleed at label edges must be minimized. Use labels with controlled adhesive designed for cleanroom use.
Size and quantity: In Grade A/B areas, minimize the number of labels to reduce particle-shedding risk. Focus on critical identification points rather than every 25 feet.
Color fastness: Labels in cleanrooms cleaned with IPA, disinfectants, or vaporized hydrogen peroxide (VHP) must resist chemical attack without fading or releasing color. Verify with your label supplier that your chosen labels are compatible with your cleaning and decontamination agents.
Stainless Steel and Sanitary Piping
High-purity pharmaceutical piping — WFI loops, purified water systems, and clean steam — is typically constructed of 316L electropolished stainless steel. Labels on these pipes require extra care:
Do not scratch or mark the pipe surface. Scratches in the passivated surface can harbor microbial growth and compromise the system's cleanability. Use adhesive-backed labels or strap-on labels — never engrave or stamp directly on pipe unless the pipe is outside the sterile boundary.
Strap-on labels with smooth stainless banding are a common choice on ultra-high-purity systems where adhesive compatibility with the pipe surface or cleaning chemicals is uncertain.
Verify adhesive compatibility with your WFI loop cleaning cycle. WFI loops may be sanitized with hot water, steam, or occasionally ozone. Confirm that your label adhesive will not release chemical residues into the system during sanitization.
Pipe Marking Documentation in Pharmaceutical QA
In pharmaceutical facilities, pipe marking is part of the quality system documentation. This means:
Piping and Instrumentation Diagrams (P&IDs) must be current and must match the field labels. During FDA inspections, agents compare field conditions to P&IDs — a pipe marker that does not match the P&ID raises questions about the facility's change control system.
Change control procedures must include pipe marking in the scope of any piping change. When a pipe system is modified, added, or repurposed, the pipe markers and P&IDs must be updated as part of the change.
Qualification documentation for water systems (WFI, purified water) often includes verification that pipe marking is complete and accurate as part of commissioning and qualification (C&Q) activities. Installation Qualification (IQ) protocols typically include pipe marking verification as a checklist item.
Pipe marking SOPs should specify the labeling standard (ASME A13.1), material requirements for cleanroom use, placement frequency, and the process for reviewing and updating labels.
Label Durability in Pharmaceutical Environments
Pharmaceutical facilities present challenging conditions for pipe labels:
Regular cleaning with IPA, bleach, or disinfectants breaks down standard adhesives and fades printed text. Use polyester labels with chemical-resistant laminates.
Vaporized hydrogen peroxide (VHP) decontamination is particularly aggressive on labels. If your facility uses VHP, test your label materials specifically against the VHP cycle before full installation.
High-purity steam and autoclave environments require labels rated for steam contact. Standard labels will delaminate. Use steam-rated polyester or aluminum labels in steam-exposed areas.
Frequent inspection and label replacement should be built into your PM (preventive maintenance) program. Annual inspection with replacement of any degraded labels is the minimum; quarterly in wet or chemically aggressive areas.
Shop Pharmaceutical-Grade Pipe Markers at Print Pro AZ
Print Pro AZ produces pipe and duct markers in polyester, aluminum, and custom materials suitable for pharmaceutical manufacturing environments. We can produce custom labels with the specific text your facility needs — WFI, PURIFIED WATER, CLEAN STEAM, PHARMA-GRADE N₂ — in every ASME A13.1 color combination and in the sizes required by the standard.
Need a full set of labels for a water system qualification? We can work from your P&IDs to produce a complete label set sized and specified for every line in your system.
Frequently Asked Questions
Does FDA require specific pipe marker colors in pharmaceutical facilities? FDA's cGMP regulations (21 CFR Part 211) do not specify colors, but they require that equipment and utilities be adequately identified to prevent mix-ups and contamination. ASME A13.1 is the industry standard used to satisfy this requirement, and FDA inspectors expect facilities to follow a recognized pipe marking standard consistently.
How do I distinguish WFI from purified water on pipe markers? Use the ASME green/white color for both (both are safe aqueous materials), but the label text must clearly specify the grade. Use "WATER FOR INJECTION" or "WFI" for WFI systems, and "PURIFIED WATER" or "PW" for purified water systems. Never use generic "WATER" labels on pharmaceutical water systems.
What label material is required in cleanroom areas? In cleanrooms, use polyester or aluminum labels that do not shed particles or fibers. Labels must have smooth faces that can be cleaned, and adhesives must not bleed at edges. Verify label compatibility with your cleaning and decontamination agents (IPA, bleach, VHP).
How often should pipe markers be replaced in a pharma facility? Annual inspection and replacement of any degraded labels is the minimum. In areas with frequent IPA or disinfectant cleaning, inspect quarterly. Replace labels that show any fading, edge lifting, bubbling, or text that is not clearly legible.
Do pharmaceutical pipe markers need to be included in change control? Yes. In a GMP-compliant facility, any change to piping systems — including changes to labeling — should go through change control. P&IDs and field pipe markers must match at all times. Inspectors compare field conditions to documentation, and discrepancies create compliance findings.
Can I use standard commercial pipe markers in a WFI system area? You can use standard polyester pipe markers in WFI areas if they are compatible with your cleaning and sanitization chemistry. Verify adhesive compatibility with hot water sanitization, steam, or ozone sanitization as applicable. The label must not contaminate the system surface or shed material into the sterile boundary.
