Pipe Marker Sizing Guide: How to Choose the Right Size Label
Picking the wrong size pipe marker is one of the most common inspection failures on commercial jobs.
The label is on the pipe. The color is right. The text is correct. But the label is too small for the pipe — and the inspector flags it.
ASME A13.1 has specific size requirements for pipe markers. They're based on one thing: the outside diameter (OD) of the pipe.
This guide tells you exactly which size to use for every pipe you'll encounter on a job.
Why Size Matters
A label that's too small is hard to read. You might have to get up close — or shine a flashlight — just to identify the pipe.
ASME A13.1 size requirements make sure every pipe marker is visible from a normal walking distance. That means a worker walking through the mechanical room or an inspector doing a walkthrough can identify every pipe at a glance.
It also means your labels pass inspection the first time.
The Two Things That Determine Label Size
1. The pipe's outside diameter (OD)
Pipe markers are sized to match the outside diameter of the pipe — including the pipe wall, any insulation, and any jacket over the insulation.
Always measure the OD of the outermost surface of the pipe you're labeling.
2. The label dimensions
There are two dimensions to understand:
- Length — how long the label is along the pipe
- Height — how tall the text area is
The bigger the pipe, the bigger the label needs to be.

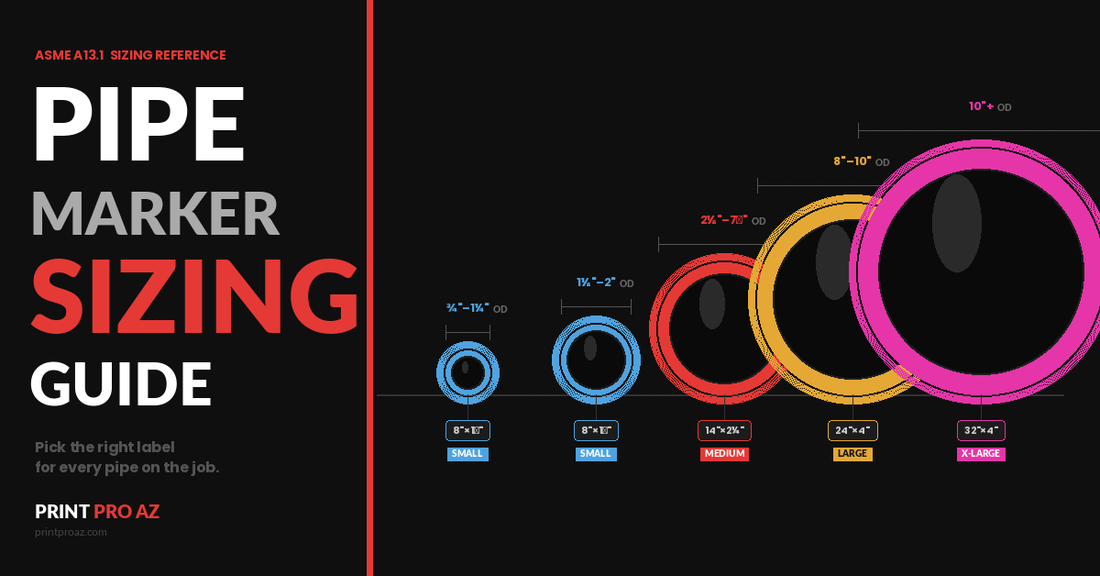

ASME A13.1 Pipe Marker Size Chart
| Pipe Outside Diameter (OD) | Label Size | Arrow Size |
|---|---|---|
| ¾" to 1¼" | 8" × 1⅛" | 2½" × ½" |
| 1½" to 2" | 8" × 1⅛" | 3" × ¾" |
| 2½" to 7⅞" | 14" × 2¼" | 5" × 1¼" |
| 8" to 10" | 24" × 4" | 6½" × 2½" |
| 10" and larger | 32" × 4" | 6½" × 2½" |
At Print Pro AZ, we stock pipe markers in all five sizes. Here's how our sizes map to the chart:
- 8" × 1⅛" — Fits ¾" to 2" pipe OD (most common for small domestic pipes)
- 14" × 2¼" — Fits 2½" to 7⅞" pipe OD (most common in commercial mechanical)
- 24" × 4" — Fits 8" to 10" pipe OD (large commercial and industrial)
- 32" × 4" — Fits 10"+ pipe OD (large mains and industrial headers)
→ Shop all pipe marker sizes at Print Pro AZ
How to Measure Your Pipe OD
You don't need a special tool. Here's how to measure pipe OD on the job:
Option 1: Use a soft tape measure Wrap the tape around the pipe and measure the circumference. Then divide by 3.14 (pi). That gives you the OD.
Example: Circumference = 9.4" ÷ 3.14 = 3" OD → use the 14" × 2¼" label
Option 2: Use a nominal pipe size (NPS) chart If you know the nominal pipe size, a standard chart gives you the OD. For example:
- 1" NPS pipe → 1.315" OD → use the 8" × 1⅛" label
- 3" NPS pipe → 3.500" OD → use the 14" × 2¼" label
- 8" NPS pipe → 8.625" OD → use the 24" × 4" label
Option 3: Check the drawings If you have access to the mechanical or plumbing plans, the pipe OD is usually listed in the pipe schedule.
Pro Tip: If your pipe is insulated, measure the OD of the insulation jacket — not the bare pipe underneath. The label goes on the outer surface, so that's what determines the size you need.
Arrow Label Sizes
Every pipe marker needs a flow direction arrow. Arrow labels are also sized by pipe OD:
| Pipe Outside Diameter (OD) | Arrow Size |
|---|---|
| ¾" to 1¼" | 2½" × ½" |
| 1½" to 2" | 3" × ¾" |
| 2½" to 7⅞" | 5" × 1¼" |
| 8" and larger | 6½" × 2½" |
At Print Pro AZ, we stock arrow labels in four sizes and six color combinations to match any ASME A13.1 pipe marker:
- 4" × 1⅛" — covers the two smallest arrow sizes
- 6" × 2¼" — fits the 5" × 1¼" arrow size
- 7" × 4" — fits the 6½" × 2½" arrow size
Common Sizing Mistakes to Avoid
Using a small label on a large pipe. The most common mistake. An 8" label on a 6" pipe is undersized and will fail inspection. Always check the OD against the chart.
Forgetting to account for insulation. Pipe insulation adds to the OD. A 2" NPS bare pipe has a 2.375" OD, but with 2" of insulation, you're looking at a 6.375" OD — which puts it in the 14" × 2¼" label range. Measure over the insulation.
Using one label size for the whole job. Some contractors try to simplify by using one label size for all pipes. That doesn't work. ASME A13.1 requires that size matches OD, and you'll almost always have a range of pipe sizes on a commercial job.
Ordering before measuring. Measure every pipe system before you place your order. You don't want to receive 500 labels and find out half of them are the wrong size for the pipes you need to mark.
A Practical Approach for a Full Job
Here's how to handle pipe labeling on a full commercial project efficiently:
- Walk the mechanical room and make a list of all pipe systems
- Note the OD for each system — or measure on the spot
- Group pipe systems by size range — most jobs have 2–3 common size groups
- Order markers in the right sizes for each group, with a small buffer of extras
- Order matching arrow labels for each size group
- Install labels starting at valves and equipment connections, then work through the straight runs
For larger facilities, it helps to have one person walking and measuring while another creates the order list. Getting sizes right upfront saves a second site visit.
Not Sure What Size You Need?
If you're not sure which label fits your pipe, we can help. The team at Print Pro AZ has worked with contractors and facility managers across the country. We'll make sure you get the right labels for your job.
We stock 235+ standard pipe markers in four sizes, with same-day shipping. Made in the USA.
👉 Shop All Pipe Markers → 👉 Need custom sizes or text? Order Custom Pipe Markers →
Frequently Asked Questions
What size pipe marker do I need for a 2" pipe? A 2" NPS pipe has an OD of about 2.375". That falls in the ¾" to 2" OD range (per ASME A13.1), so you use an 8" × 1⅛" label.
What size label do I need for a 4" pipe? A 4" NPS pipe has an OD of 4.5". That falls in the 2½" to 7⅞" range, so you need a 14" × 2¼" label.
What if my pipe is insulated? Measure the OD of the insulation jacket — not the bare pipe underneath. That's the surface you're labeling, so that determines your label size.
Can I use a larger label than required? In most cases, yes — as long as it's readable and properly applied. But never go smaller than the required size for your pipe OD.
What size arrow label do I need? Arrow label size is based on the same pipe OD as the text label. Refer to the arrow size column in the ASME A13.1 chart above.
Do pipe markers have to wrap all the way around the pipe? No. ASME A13.1 does not require full-wrap labels. The label just needs to be clearly visible from normal viewing angles during regular operations.
What is nominal pipe size (NPS) vs. outside diameter (OD)? Nominal pipe size is a standardized label for pipe sizes — it's not the actual measurement. The outside diameter is the true measured dimension of the pipe. For example, a "2-inch pipe" (2" NPS) actually has an OD of 2.375". Always use OD when selecting pipe marker sizes.
