Where to Put Pipe Markers: Placement Rules Under ASME A13.1
Getting the color right is step one. Getting the size right is step two. But there's a third thing that trips up a lot of contractors on inspection day: putting the labels in the right places.
ASME A13.1 doesn't just tell you what color to use and how big to go. It also tells you exactly where to put the labels.
This guide breaks down every placement rule so you don't miss a spot.
Why Placement Rules Exist
A pipe marker only works if someone can see it.
Think about a worker who walks into an unfamiliar mechanical room in an emergency. They need to identify pipes fast. If labels are only placed every 100 feet, or hidden behind equipment, the labels aren't doing their job.
ASME A13.1 placement rules make sure labels are:
- Visible from normal walking distances
- Located at the places where workers interact with the pipe
- Repeated often enough that no stretch of pipe goes unidentified
If a pipe is labeled in only one spot and that spot is behind a pump, the label is practically useless. Good placement means the right person can read the right label at the right moment.

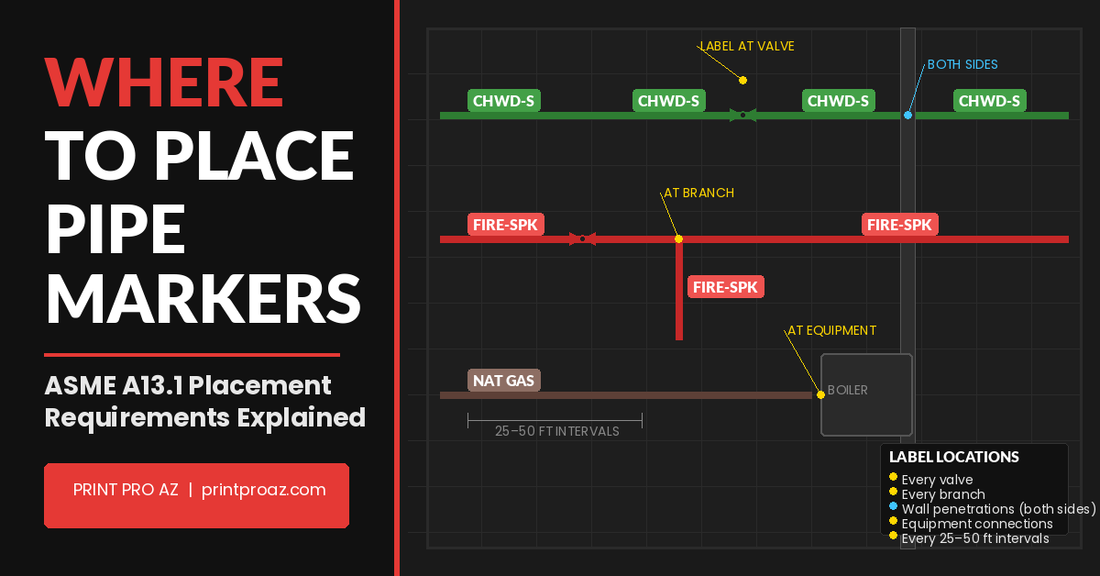

The 5 Required Placement Locations
ASME A13.1 requires labels at five specific locations on every pipe system:
1. At Every Valve
Valves are the most important placement location.
A worker about to shut off a valve needs to know exactly what they're shutting off. Is it the domestic cold water supply? The fire sprinkler main? The acid waste line?
Label both sides of each valve — upstream and downstream — whenever possible. This way, the pipe content is clear no matter which direction a worker approaches from.
This applies to all valves: gate valves, ball valves, butterfly valves, check valves, and pressure reducing valves.
2. At Every Branch Connection
Wherever one pipe splits into two (or two merge into one), each branch needs a label.
Branch connections are common in mechanical rooms and pipe chases. A main domestic water line might branch into a cold water supply line, a boiler feed line, and a hose bib supply. Each branch should have its own marker showing exactly what that branch is carrying.
Don't assume the label at the main tells the story for each branch. Label each branch independently.
3. On Both Sides of Wall, Floor, and Ceiling Penetrations
When a pipe passes through a wall, floor, or ceiling, put a label on both sides of the penetration.
Why? Because someone on one side of the wall can't see the label on the other side.
A pipe chase going through multiple floors needs a label above and below each floor penetration. A pipe going through a firewall needs a label on both sides of that wall.
This rule applies to:
- Interior walls and partitions
- Exterior walls
- Floor slabs
- Ceiling penetrations
- Fire-rated assemblies
4. Near Every Piece of Equipment
Label the pipe at the point where it connects to equipment.
This includes:
- Boilers and water heaters
- Chillers and cooling towers
- Air handling units
- Pumps and pump stations
- Storage tanks
- Heat exchangers
- Compressors
The label goes on the pipe — not on the equipment itself. Place it close enough to the connection that a worker can see which pipe goes to which piece of equipment.
On complex mechanical equipment with multiple pipe connections (like a chiller with supply, return, condenser water, and refrigerant lines), each connecting pipe should be labeled at the connection point.
5. At Regular Intervals on Long Straight Runs
On long sections of pipe with no valves, branches, or penetrations, labels need to be repeated at regular intervals.
ASME A13.1 doesn't set a hard number, but the most widely accepted guideline is every 25 to 50 feet on straight runs. Many facilities and local codes specify 25 feet as the standard.
The goal is that no matter where a worker stands along a pipe run, they can see a label without having to walk far to find one.
In practice, this matters in:
- Long mechanical corridors
- Basement pipe runs
- Parking garage utility pipes
- Industrial pipe racks and bridges
Label Orientation: Which Way Does It Face?
Labels should be placed so they can be read from the floor — or from the normal standing position of a worker doing their job.
In most cases, that means:
- Horizontal pipes: Place the label on the top or side of the pipe, facing the direction of normal foot traffic
- Vertical pipes: Place the label at or near eye level, facing the direction a worker would typically approach
- Overhead pipes: Face the label downward or at an angle that's readable from the floor
Labels facing a wall, hidden behind insulation jacket seams, or pointing up toward the ceiling are not compliant — even if they're technically on the pipe.
Flow Direction Arrows: Part of Proper Placement
Wherever you place a text label, a flow direction arrow should go with it.
ASME A13.1 requires arrows to show which direction the fluid or gas is flowing. The arrow can be:
- Built directly into the label design (integrated arrow on one or both ends)
- A separate arrow label placed adjacent to the text marker
Flow arrows are especially important at branch connections, where the direction might not be obvious. On a T-connection, arrows show which way the fluid is flowing in each direction.
At Print Pro AZ, we stock standalone arrow direction labels in all standard ASME A13.1 colors to pair with any text marker.
How Many Labels Do You Need for One Pipe Run?
Here's a practical way to count it for a typical pipe run:
- One label at the source (where the pipe starts — typically at the equipment or main)
- One label at every valve along the run
- One label at every branch takeoff
- One label on each side of every wall or floor penetration
- One label every 25 to 50 feet on open straight runs between the above
- One label at the end of the run (near the terminal equipment)
On a 200-foot pipe run with 4 valves, 2 branches, and 3 wall penetrations, you might need 15–20 labels just to cover that one pipe system. This is why ordering extras is always a good idea.
Common Placement Mistakes to Avoid
Labeling only in the mechanical room. The pipe doesn't stop at the mechanical room door. Label it wherever it goes — through corridors, into ceiling spaces, across floors.
Skipping branches. Each branch is its own pipe system. Label every branch at the takeoff.
One label per wall penetration. If the pipe goes through the wall, both sides need a label — not just one side.
Labels facing the wrong direction. A label that faces up into the ceiling or toward a wall can't be read. Orient labels for normal viewing from floor level.
Spacing labels too far apart. On a 200-foot run through a parking garage, one label in the middle isn't enough. Space them every 25–50 feet.
No arrows. The text tells you what's in the pipe. The arrow tells you which way it flows. Both are required.
A Quick Placement Checklist for the Job
Use this before you consider a pipe system fully labeled:
- Labeled at source/origin
- Labeled at every valve (both sides when possible)
- Labeled at every branch connection
- Labeled on both sides of every wall, floor, and ceiling penetration
- Labeled at every equipment connection
- Labeled at 25–50 foot intervals on open straight runs
- Labels readable from floor level
- Flow direction arrows present at each label location
- Labels sized correctly for the pipe OD
Not Sure If You Have the Right Quantity?
If you're quoting a job and need help figuring out how many labels to order, the team at Print Pro AZ can help. We've worked with contractors and facility managers across the country on jobs of every size.
We stock 235+ standard pipe markers in four sizes with same-day shipping. Made in the USA.
👉 Shop All Pipe Markers → 👉 Need custom text or colors? Order Custom Pipe Markers →
Frequently Asked Questions
How far apart do pipe markers need to be? ASME A13.1 requires labels at regular intervals on straight runs. The most common standard is every 25 to 50 feet. Many facilities and local codes specify 25 feet.
Do you need a label on both sides of a wall penetration? Yes. ASME A13.1 requires labels on both sides of any wall, floor, or ceiling penetration so the pipe is identified from either side.
Do you need a label at every valve? Yes. Every valve on every pipe system needs a label. This is one of the most important placement requirements — a worker about to operate a valve needs to know exactly what they're shutting off.
Where exactly should a label go on a horizontal pipe? Labels on horizontal pipes should face the direction of normal foot traffic and be readable from the floor without a ladder. Top-of-pipe placement is common for pipes in overhead locations.
What about vertical pipes? Place labels at or near eye level on vertical pipes. The label should face the direction a worker typically approaches from.
Do you need an arrow label at every text label? Yes. ASME A13.1 requires flow direction arrows wherever a text label is placed. The arrow can be integrated into the label or a separate standalone arrow label.
What if a pipe goes through an inaccessible space like above a ceiling tile? Label it on both visible sides of the penetration. For pipes in inaccessible spaces, you're not expected to label every 25 feet inside the plenum — focus on the accessible points where workers would encounter the pipe.
